NSN 5985-00-845-4818
Part Details | WAVEGUIDE SWITCH
5985-00-845-4818 An item specifically designed for mechanically or electronically positioning one or more waveguide sections so as to couple it or them to other sections in a waveguide system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified).
Alternate Parts: 10043766, RAM465P, 5985-00-845-4818, 00-845-4818, 5985008454818, 008454818
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1962 | 00-845-4818 | 05118 ( SWITCH, WAVEGUIDE ) |

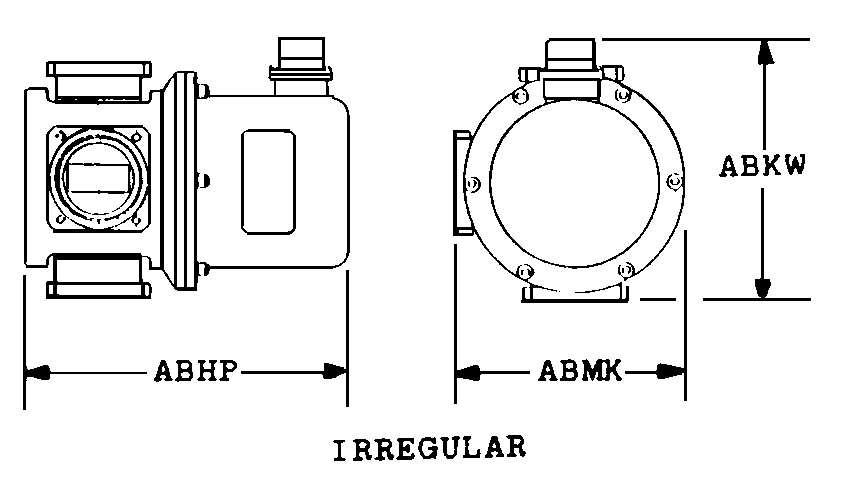

REFERENCE DRAWINGS & PICTURES
IRREGULAR
Cross Reference | NSN 5985-00-845-4818
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10043766 | 18876 | U S ARMY AVIATION AND MISSILECOMMAND |
| RAM465P | 00443 | WAVELINE, INCORPORATED |
Technical Data | NSN 5985-00-845-4818
| Characteristic | Specifications |
|---|---|
| ACTUATOR OPERATING METHOD | RELAY |
| ACTUATOR VOLTAGE IN VOLTS | 28.0 NOMINAL |
| SWITCH TYPE | TRANSFER |
| COUPLING POSITION QUANTITY | 3 |
| SWITCHING TIME | 50.0 MILLISECONDS |
| BODY STYLE | IRREGULAR |
| OVERALL LENGTH | 4.563 INCHES NOMINAL |
| OVERALL HEIGHT | 4.063 INCHES NOMINAL |
| OPERATING TEMP RANGE | -40.0 TO +85.0 DEG CELSIUS |
| END ITEM IDENTIFICATION | RADAR SET AN/MPQ-37 |
