NSN 5985-00-833-3718
Part Details | VARIABLE ATTENUATOR
5985-00-833-3718 A device for reducing the strength of an alternating current signal either continuously or in steps, without causing appreciable signal distortion, by maintaining substantially constant output and/or input impedance match. Continuously variable resistive devices must consist of at least two sections or one section with at least two rotating contacts. The item must have an overall attenuation rating. Includes tandem mounted variable resistors designed to function as an attenuator but whose terminals are not connected. See also RESISTOR, VAIABLE (as modified).
Alternate Parts: 04608P1, A60612, 5985-00-833-3718, 00-833-3718, 5985008333718, 008333718
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | SEP 08, 1967 | 00-833-3718 | 00838 ( ATTENUATOR, VARIABLE ) |
REFERENCE DRAWINGS & PICTURES

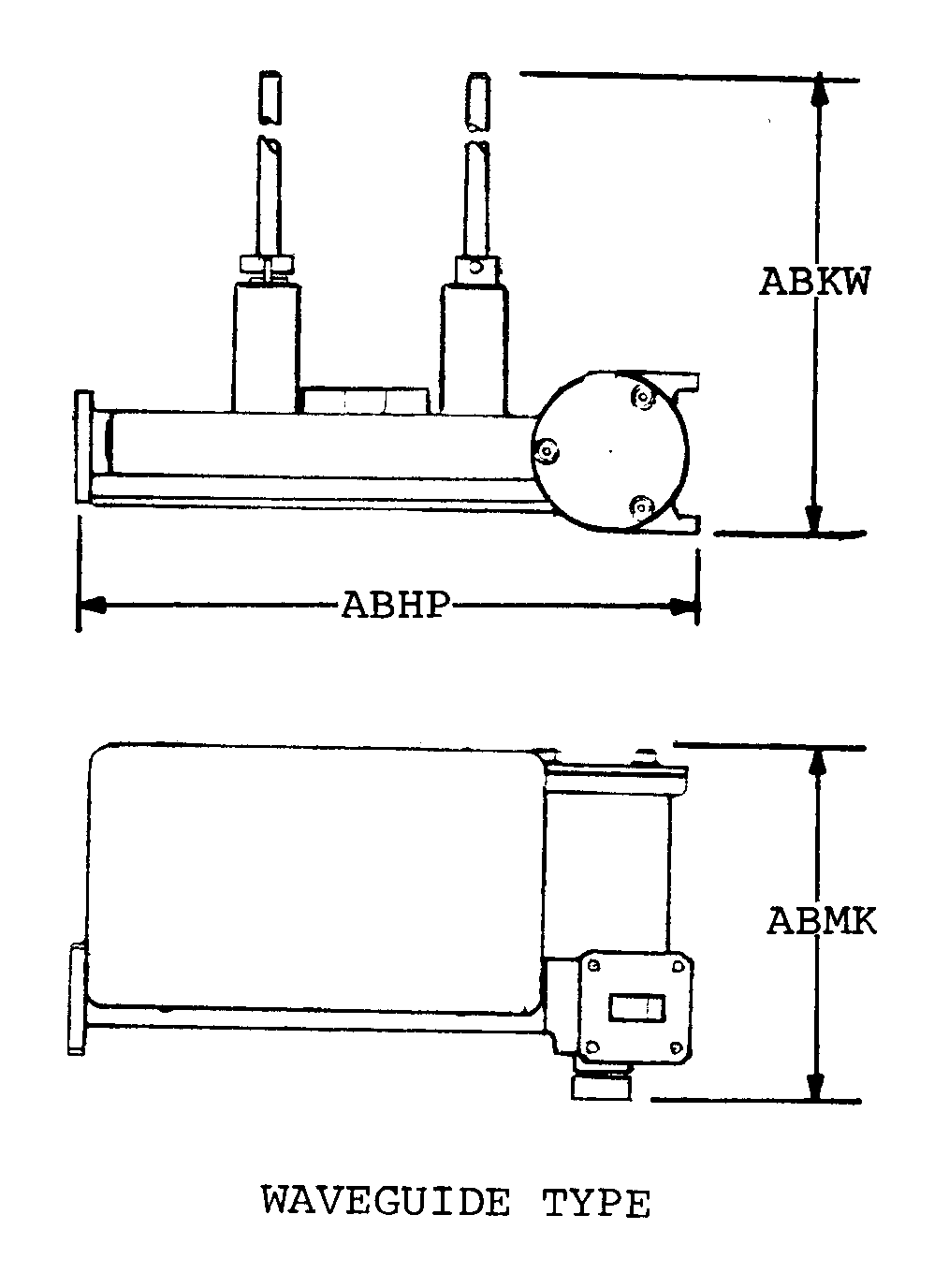

WAVEGUIDE TYPE
Cross Reference | NSN 5985-00-833-3718
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 04608P1 | 94117 | BAE SYSTEMS INFORMATION ANDELECTRONIC SYSTEMS INTEGRATION INC. |
| A60612 | 12457 | MERRIMAC INDUSTRIES, INC. |
Technical Data | NSN 5985-00-833-3718
| Characteristic | Specifications |
|---|---|
| APPLICATION DESIGN | TRANSMISSION LINE |
| BODY STYLE | WAVEGUIDE TYPE |
| OVERALL LENGTH | 8.380 INCHES NOMINAL |
| OVERALL HEIGHT | 2.380 INCHES NOMINAL |
| FSC APPLICATION DATA | NO. 496L SPACE DETECTING AND TRACKING SYSTEM |
