NSN 5985-00-777-6370
Part Details | RADIO FREQUENCY TRANSMISSION LINE SWITCH
5985-00-777-6370 An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified).
Alternate Parts: 20883810002, 2088381-0002, 20883812, 2088381-2, 385125902, 20883812, 2088381-2, 5985-00-777-6370, 00-777-6370, 5985007776370, 007776370
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1960 | 00-777-6370 | 05298 ( SWITCH, RADIO FREQUENCY TRANSMISSION LINE ) |
REFERENCE DRAWINGS & PICTURES

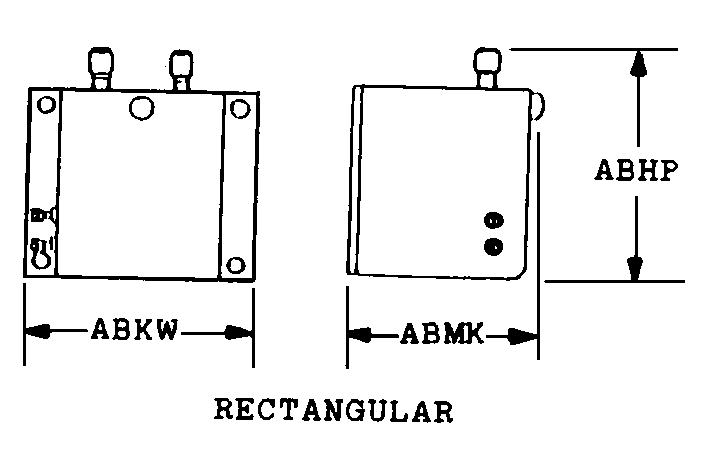

RECTANGULAR
Cross Reference | NSN 5985-00-777-6370
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2088381-0002 | 27914 | HONEYWELL INTERNATIONAL INCDBA HONEYWELL |
| 2088381-2 | 27914 | HONEYWELL INTERNATIONAL INCDBA HONEYWELL |
| 385125902 | 55091 | RADIANT TECHNOLOGY CORP |
| 2088381-2 | 06845 | RAYTHEON COMPANYDBA RAYTHEON |
Technical Data | NSN 5985-00-777-6370
| Characteristic | Specifications |
|---|---|
| ACTUATOR VOLTAGE IN VOLTS | 27.5 NOMINAL |
| SWITCH TYPE | TRANSFER |
| COUPLING POSITION QUANTITY | 3 |
| TERMINAL TYPE AND QUANTITY | 4 SOLDER STUD |
| COAXIAL CONNECTOR SERIES DESIGNATION | BN |
| SWITCH OPERATION SEQUENCE | MAKES BEFORE BREAKS |
| BODY STYLE | RECTANGULAR |
| OVERALL LENGTH | 4.000 INCHES NOMINAL |
| OVERALL HEIGHT | 2.000 INCHES NOMINAL |
| OVERALL WIDTH | 2.375 INCHES NOMINAL |
| OPERATING TEMP RANGE | -65.0 TO +125.0 DEG CELSIUS |
