NSN 5985-00-757-9834
Part Details | FIXED ATTENUATOR
5985-00-757-9834 A device for reducing the strength of an alternating current signal by a fixed or predetermined amount, without causing appreciable signal distortion, by maintaining correct impedance match.
Alternate Parts: C2000393433, C200039343-3, 5985-00-757-9834, 00-757-9834, 5985007579834, 007579834
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUL 09, 1971 | 00-757-9834 | 14224 ( ATTENUATOR, FIXED ) |
REFERENCE DRAWINGS & PICTURES

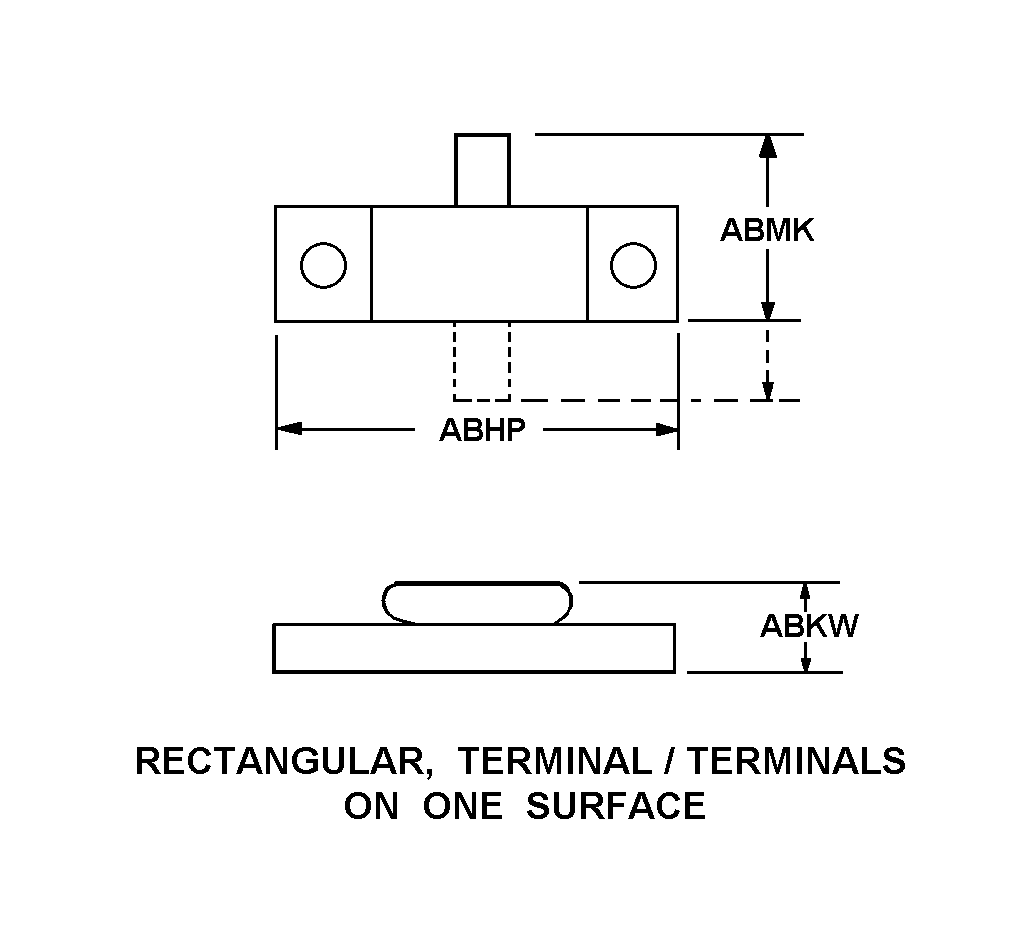

RECTANGULAR TERMINAL/TERMINALS ON ONE SURFACE
Cross Reference | NSN 5985-00-757-9834
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| C200039343-3 | 01220 | SYSTRON-DONNER CORPMICROWAVE/INSTRUMENT DIV |
Technical Data | NSN 5985-00-757-9834
| Characteristic | Specifications |
|---|---|
| APPLICATION DESIGN | TRANSMISSION LINE |
| BODY STYLE | RECTANGULAR TERMINAL/TERMINALS ON ONE SURFACE |
| MOUNTING METHOD | PLUG-IN |
