NSN 5985-00-757-2434
Part Details | RADIO FREQUENCY TRANSMISSION LINE SWITCH
5985-00-757-2434 An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified).
Alternate Parts: 375A655, 375A655, 5985-00-757-2434, 00-757-2434, 5985007572434, 007572434
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-757-2434 | 05298 ( SWITCH, RADIO FREQUENCY TRANSMISSION LINE ) |
REFERENCE DRAWINGS & PICTURES

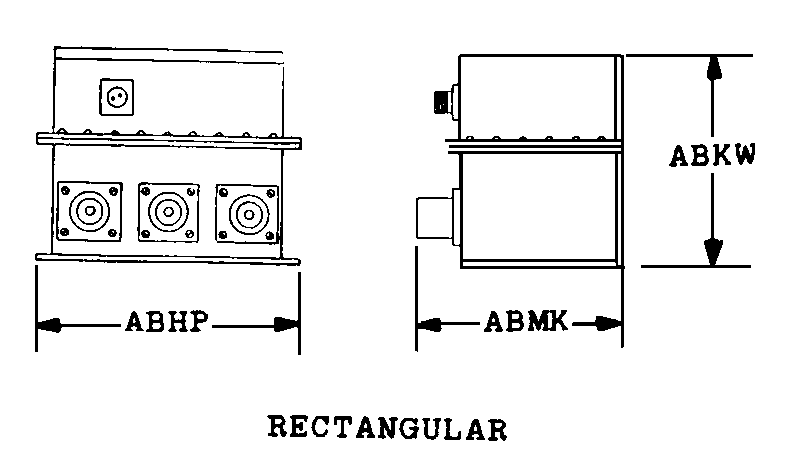

RECTANGULAR
Cross Reference | NSN 5985-00-757-2434
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 375A655 | 97942 | NORTHROP GRUMMAN SYSTEMS CORPORATIONDIV NORTHROP GRUMMAN SYSTEMS |
| 375A655 | 79500 | WESTINGHOUSE ELECTRIC CORP |
Technical Data | NSN 5985-00-757-2434
| Characteristic | Specifications |
|---|---|
| ACTUATOR OPERATING METHOD | MANUAL |
| SWITCH TYPE | TRANSFER |
| COUPLING POSITION QUANTITY | 2 |
| TERMINAL TYPE AND QUANTITY | 3 QUICK DISCONNECT, FEMALE |
| SWITCH OPERATION SEQUENCE | BREAKS BEFORE MAKES |
| SWITCHING TIME | 4.0 SECONDS |
| BODY STYLE | RECTANGULAR |
| OVERALL LENGTH | 15.875 INCHES MINIMUM AND 16.125 INCHES MAXIMUM |
| OVERALL HEIGHT | 16.512 INCHES MINIMUM AND 16.574 INCHES MAXIMUM |
| OVERALL WIDTH | 11.125 INCHES NOMINAL |
