NSN 5985-00-104-8479
Part Details | VARIABLE ATTENUATOR
5985-00-104-8479 A device for reducing the strength of an alternating current signal either continuously or in steps, without causing appreciable signal distortion, by maintaining substantially constant output and/or input impedance match. Continuously variable resistive devices must consist of at least two sections or one section with at least two rotating contacts. The item must have an overall attenuation rating. Includes tandem mounted variable resistors designed to function as an attenuator but whose terminals are not connected. See also RESISTOR, VAIABLE (as modified).
Alternate Parts: 4541430, 4-5414-30, 5985-00-104-8479, 00-104-8479, 5985001048479, 001048479
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUN 23, 1968 | 00-104-8479 | 00838 ( ATTENUATOR, VARIABLE ) |
REFERENCE DRAWINGS & PICTURES

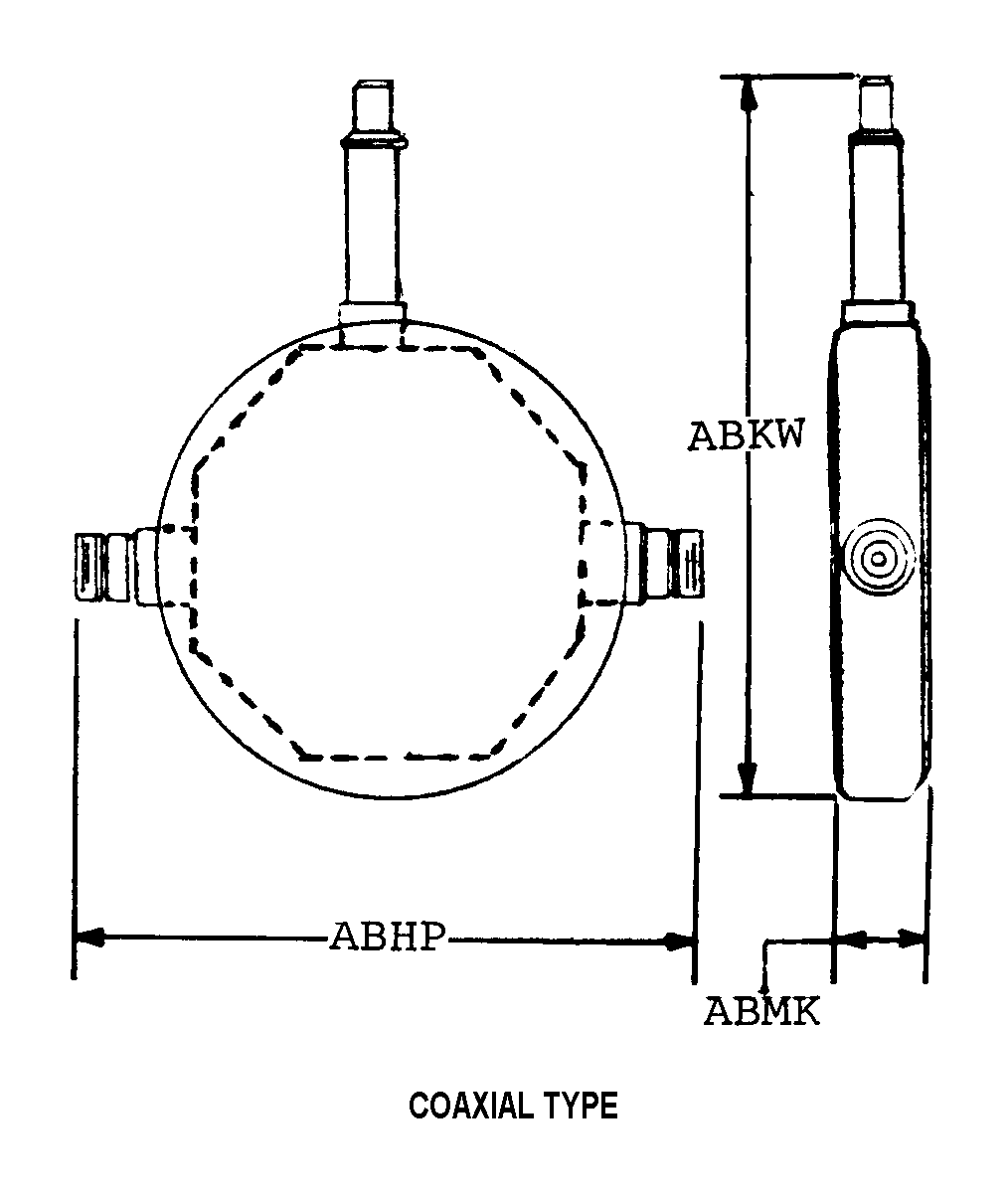

COAXIAL TYPE
Cross Reference | NSN 5985-00-104-8479
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4-5414-30 | 09992 | ARRA INC |
Technical Data | NSN 5985-00-104-8479
| Characteristic | Specifications |
|---|---|
| APPLICATION DESIGN | TRANSMISSION LINE |
| FREQUENCY RANGE | 2.000 GIGAHERTZ MINIMUM AND 6.000 GIGAHERTZ MAXIMUM |
| VOLTAGE STANDING WAVE RATIO | 1.30 |
| POWER RATING | 10.0 WATTS AVERAGE AND 5.0 KILOWATTS PEAK |
| INSERTION LOSS AT MINIMUM ATTENUATION IN MAXIMUM DECIBELS | 0.2 |
| OVERALL ATTENUATION RANGE IN DECIBELS | P0.0/P30.0 |
| ATTENUATION VARIATION METHOD | CONTINUOUS |
| BODY STYLE | COAXIAL TYPE |
| OVERALL LENGTH | 5.500 INCHES NOMINAL |
| OVERALL HEIGHT | 6.000 INCHES NOMINAL |
| OVERALL WIDTH | 1.000 INCHES NOMINAL |
| ADJUSTMENT DEVICE TYPE AND QUANTITY | 1 MICROMETER |
| TERMINAL TYPE AND QUANTITY | 2 CONNECTOR, COAXIAL, FEMALE |
| COAXIAL CONNECTOR SERIES DESIGNATION | N |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 CONNECTOR |
| BODY MATERIAL | ALUMINUM |
| FSC APPLICATION DATA | ANTENNAS,WAVEGUIDES,AND RELATED EQUIPMENT |
