NSN 5977-01-147-5850
Part Details | ELECTRICAL CONTACT BRUSH HOLDER
5977-01-147-5850 A holder designed to accommodate and position a brush against a commutator or collector ring. Also includes items consisting of two or more brush holders (boxes) cast as an inseparable unit. May include facilities for applying pressure to the brush(es) and may also be furnished with the brush(es). See also HOLDER ASSEMBLY, ELECTRICAL CONTACT BRUSH.
Alternate Parts: 2AG822, 2AG822, A027099479, 99479, A027099479, 99479, 12320992, 5977-01-147-5850, 01-147-5850, 5977011475850, 011475850
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | FEB 18, 1983 | 01-147-5850 | 02937 ( HOLDER, ELECTRICAL CONTACT BRUSH ) |
REFERENCE DRAWINGS & PICTURES

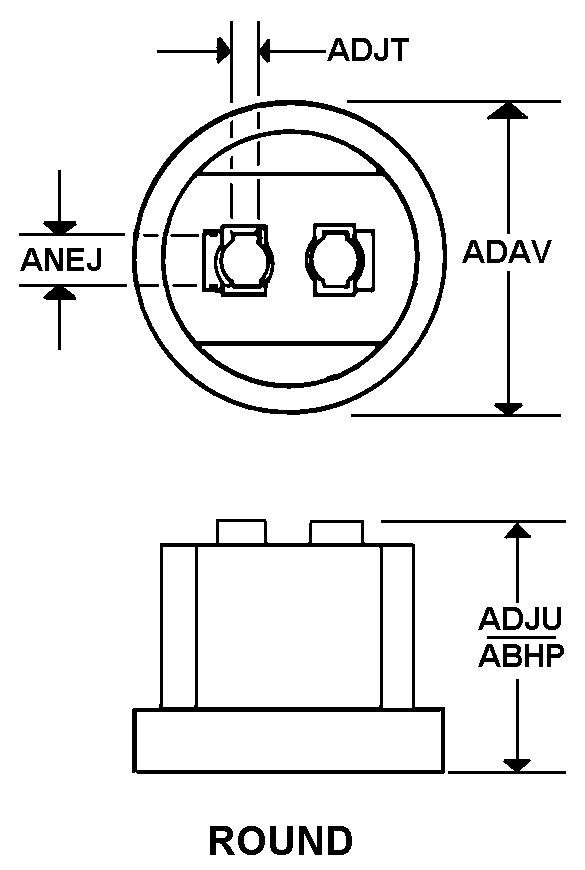

ROUND
Cross Reference | NSN 5977-01-147-5850
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2AG822 | 45152 | OSHKOSH CORPORATION |
| 2AG822 | 75Q65 | OSHKOSH DEFENSE, LLC |
| A027099479 | 35510 | PRESTOLITE ELECTRIC INC |
| 99479 | 35510 | PRESTOLITE ELECTRIC INC |
| A027099479 | 24975 | PRESTOLITE ELECTRIC INCORPORATEDDBA PRESTOLITE ELECTRIC |
| 99479 | 24975 | PRESTOLITE ELECTRIC INCORPORATEDDBA PRESTOLITE ELECTRIC |
| 12320992 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 5977-01-147-5850
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | ROUND |
| OVERALL LENGTH | 1.632 INCHES NOMINAL |
| OVERALL DIAMETER | 1.656 INCHES NOMINAL |
| INSIDE WIDTH | 0.500 INCHES NOMINAL |
| INSIDE LENGTH | 1.632 INCHES NOMINAL |
| INSIDE THICKNESS | 0.390 INCHES NOMINAL |
| MATERIAL AND LOCATION | PLASTIC BOX |
| CONTACT END BEVEL | INCLUDED |
| CAP | NOT INCLUDED |
| BRUSH QUANTITY ACCOMMODATED PER HOLDER | 2 |
| SPECIAL FEATURES | 2350-01-085-3792 |
