NSN 5975-01-328-6287
Part Details | STUFFING TUBE PLUG
5975-01-328-6287 An item designed to be fitted into the body of a STUFFING TUBE in order to prevent the leakage of liquids and/or gases through the opening in the absence of the cable normally passing through the tube.
Alternate Parts: C5086240, 5975-01-328-6287, 01-328-6287, 5975013286287, 013286287
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | NOV 06, 1990 | 01-328-6287 | 03882 ( PLUG, STUFFING TUBE ) |

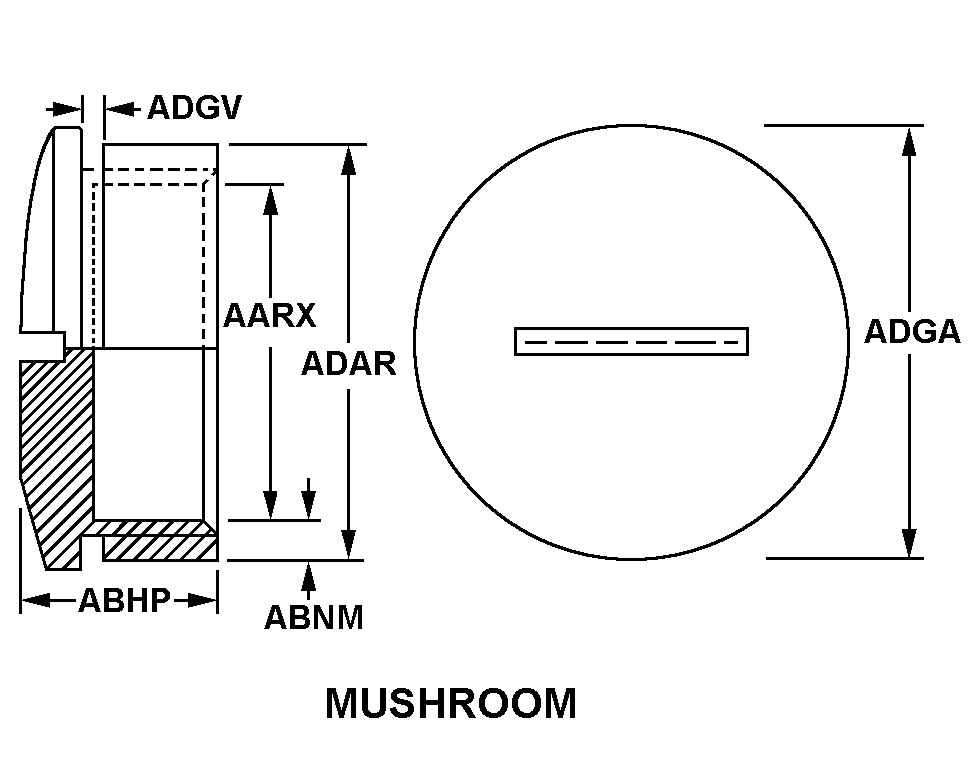

REFERENCE DRAWINGS & PICTURES
MUSHROOM
Cross Reference | NSN 5975-01-328-6287
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| C5086240 | 57946 | US ARMY COMBAT SURVEILLANCE ANDTARGET ACQUISITION LABORATORY |
Technical Data | NSN 5975-01-328-6287
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | MUSHROOM |
| OVERALL LENGTH | 0.430 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 0.209 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 0.375 INCHES NOMINAL |
