NSN 5975-01-326-6807
Part Details | STUFFING TUBE
5975-01-326-6807 An item specifically designed to pass an electrical cable or tube through a continuous structure with provisions for packing so as to prevent the leakage of liquids and/or gases through the opening. May include packing nut(s), adapter(s), washer(s), gasket(s), bushing(s), packing(s), cap(s), and/or plug(s).
Alternate Parts: SE93323A34N, SE93-323A-34N, 5975-01-326-6807, 01-326-6807, 5975013266807, 013266807
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | SEP 28, 1990 | 01-326-6807 | 00882 ( STUFFING TUBE ) |
REFERENCE DRAWINGS & PICTURES

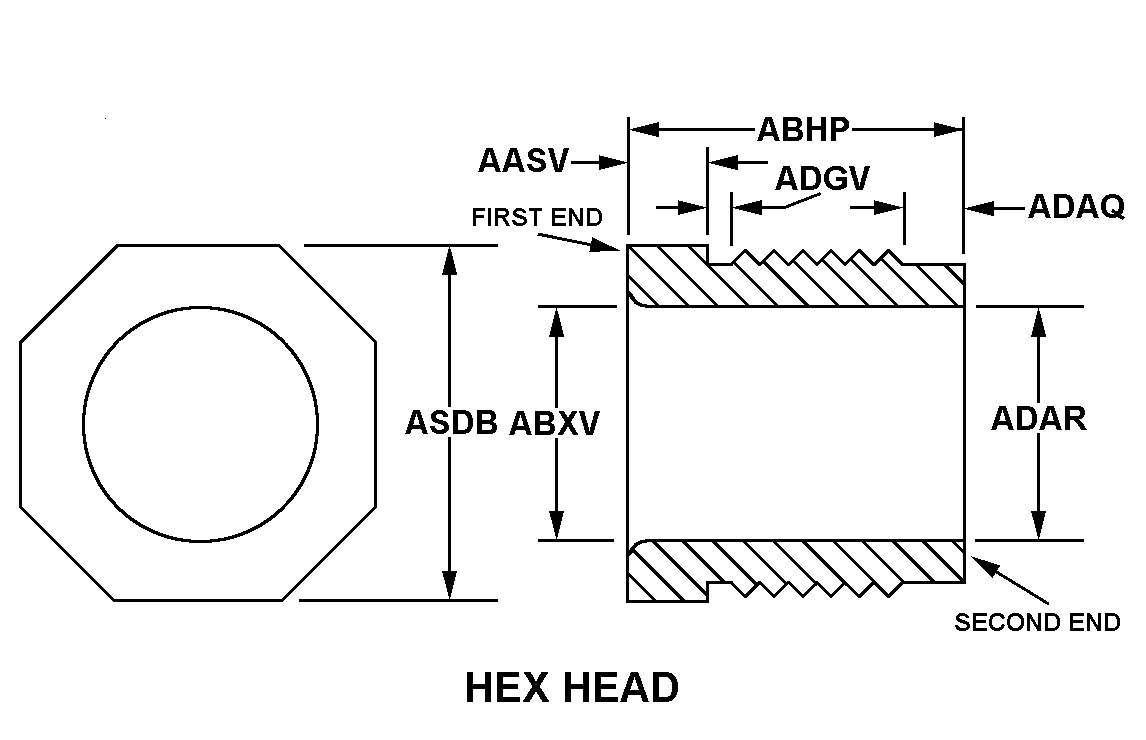

HEX HEAD
Cross Reference | NSN 5975-01-326-6807
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SE93-323A-34N | 07418 | JOSLYN SUNBANK COMPANY, LLC |
Technical Data | NSN 5975-01-326-6807
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | HEX HEAD |
| WIDTH ACROSS FLATS | 2.969 INCHES MAXIMUM |
| HEAD LENGTH | 0.190 INCHES NOMINAL |
| BORE DIAMETER | 1.500 INCHES MINIMUM AND 1.875 INCHES MAXIMUM |
| SUPPLEMENTARY FEATURES | END ITEM 6660-01-148-1772 |
