NSN 5975-01-324-9956
Part Details | ELECTRICAL CONDUIT WYE
5975-01-324-9956 A type of electrical conduit fitting fabricated in the form of the letter Y, having three hubs permitting conduits and/or conduit fittings to be taken off laterally from the main line of equal degree on each side, or with the main line continuing straight with a branch taking off at an angle. For items of this type having facilities for mounting wiring devices, see CONDUIT OUTLET.
Alternate Parts: 5336095002, 5336095-002, 5336095002, 5336095-002, 5336095002, 5336095-002, 5975-01-324-9956, 01-324-9956, 5975013249956, 013249956
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | AUG 25, 1990 | 01-324-9956 | 10234 ( WYE, ELECTRICAL CONDUIT ) |

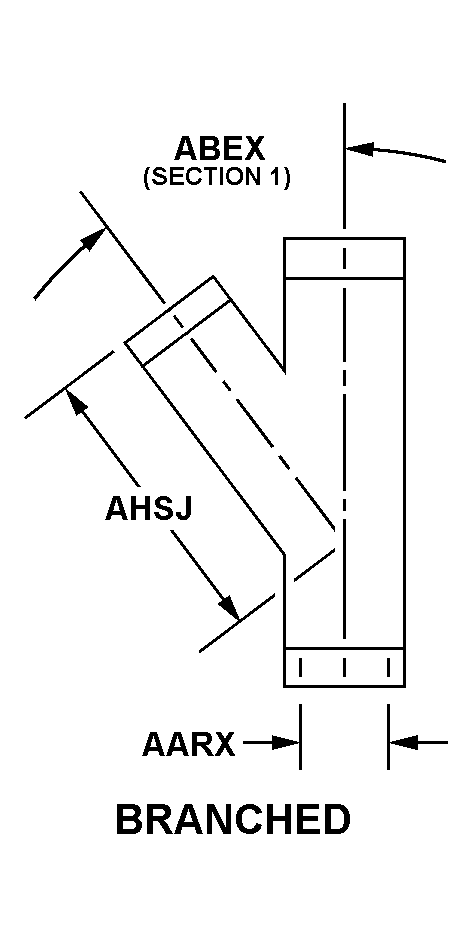

REFERENCE DRAWINGS & PICTURES
BRANCHED
Cross Reference | NSN 5975-01-324-9956
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5336095-002 | 18863 | GLENAIR INC.DBA ABC DIVISION |
| 5336095-002 | 06324 | GLENAIR, INC. |
| 5336095-002 | 53711 | NAVAL SEA SYSTEMS COMMAND |
Technical Data | NSN 5975-01-324-9956
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | BRANCHED |
| MATERIAL | BRASS |
| SURFACE TREATMENT | CADMIUM |
| DEFLECTION ANGLE | 45.0 DEGREES |
