NSN 5975-01-324-8980
Part Details | STUFFING TUBE
5975-01-324-8980 An item specifically designed to pass an electrical cable or tube through a continuous structure with provisions for packing so as to prevent the leakage of liquids and/or gases through the opening. May include packing nut(s), adapter(s), washer(s), gasket(s), bushing(s), packing(s), cap(s), and/or plug(s).
Alternate Parts: 16019125, 160-19125, 5975-01-324-8980, 01-324-8980, 5975013248980, 013248980
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | AUG 24, 1990 | 01-324-8980 | 00882 ( STUFFING TUBE ) |

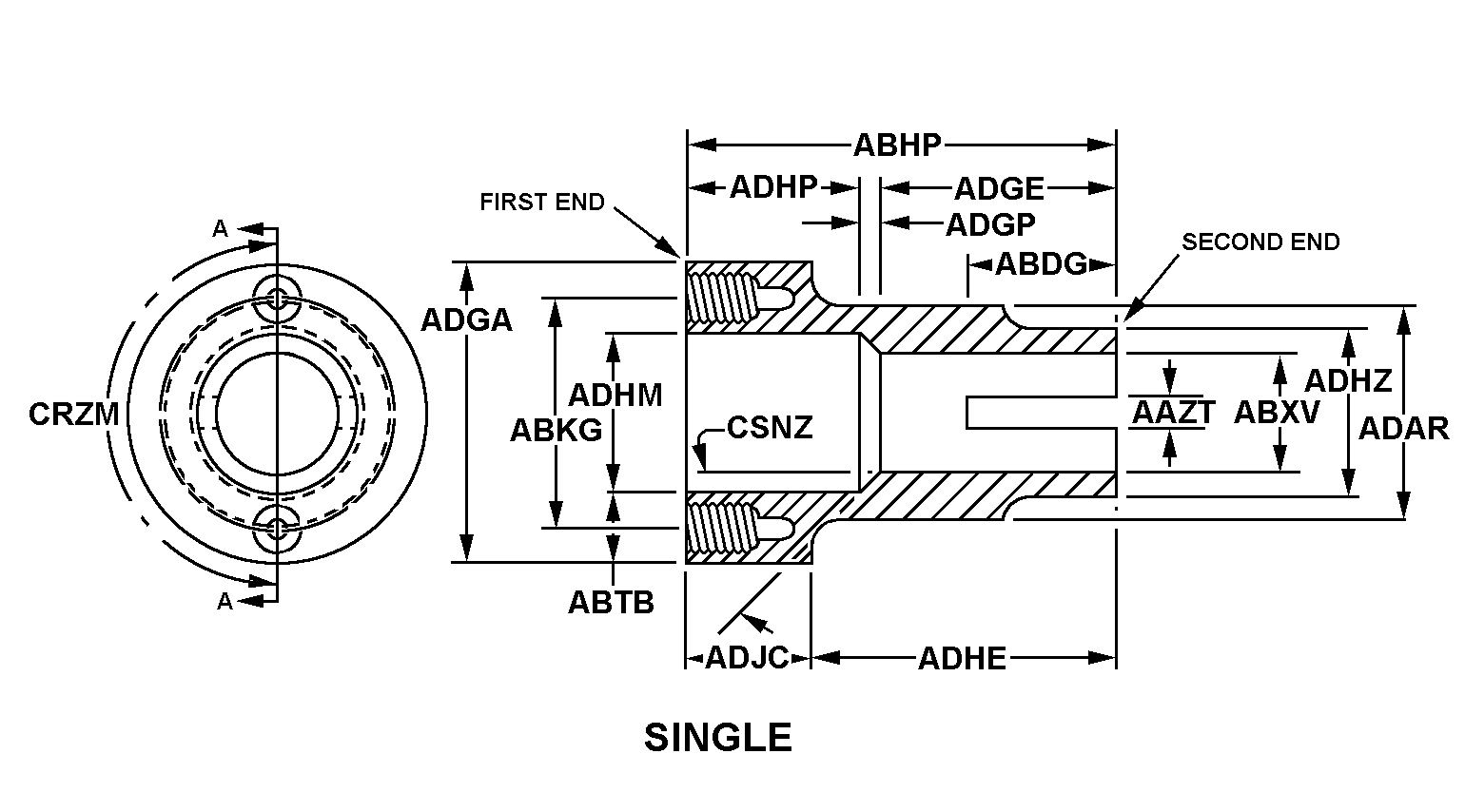

REFERENCE DRAWINGS & PICTURES
SINGLE
Cross Reference | NSN 5975-01-324-8980
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 160-19125 | 81982 | HYDRO-AIRE, INC. |
Technical Data | NSN 5975-01-324-8980
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SINGLE |
| OVERALL LENGTH | 2.870 INCHES NOMINAL |
| MOUNTING HOLE DIAMETER | 0.220 INCHES NOMINAL |
| BORE DIAMETER | 0.390 INCHES NOMINAL |
| BORE LENGTH | 0.590 INCHES NOMINAL |
| FIRST PACKING CHAMBER INSIDE DIAMETER | 0.614 INCHES NOMINAL |
| FIRST PACKING CHAMBER LENGTH | 0.650 INCHES NOMINAL |
| DISTANCE FROM OUTSIDE EDGE OF FIRST PACKING CHAMBER TO EDGE OF MOUNTING FLANGE | 0.210 INCHES NOMINAL |
| MOUNTING METHOD | FLANGE |
| SPECIAL FEATURES | KC-135 ACFT,CFM-56; OUTLET,FITTING,ELECT. |
