NSN 5975-01-322-4885
Part Details | STUFFING TUBE
5975-01-322-4885 An item specifically designed to pass an electrical cable or tube through a continuous structure with provisions for packing so as to prevent the leakage of liquids and/or gases through the opening. May include packing nut(s), adapter(s), washer(s), gasket(s), bushing(s), packing(s), cap(s), and/or plug(s).
Alternate Parts: M196227007, M19622/7-007, MILS196227, MIL-S-19622/7, 5975-01-322-4885, 01-322-4885, 5975013224885, 013224885
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUL 07, 1990 | 01-322-4885 | 00882 ( STUFFING TUBE ) |

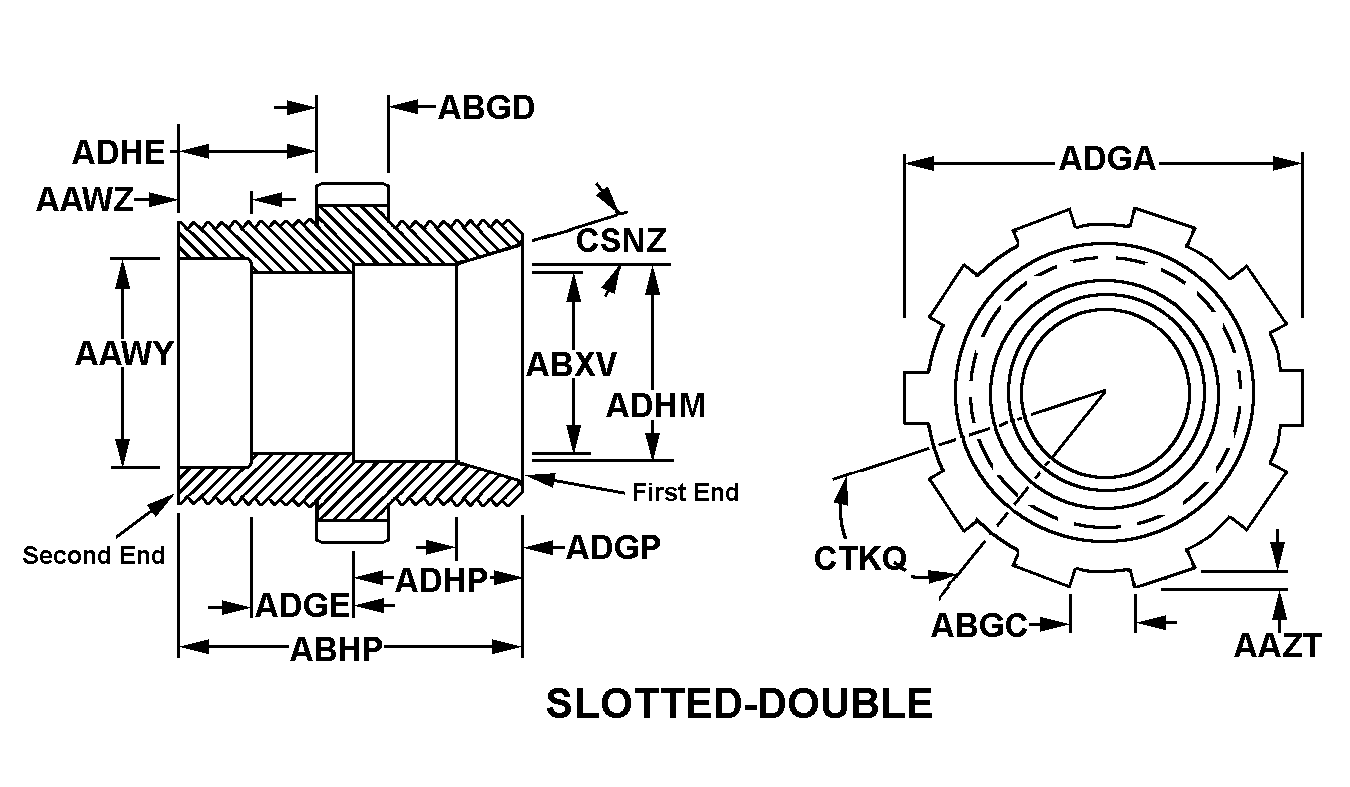

REFERENCE DRAWINGS & PICTURES
SLOTTED-DOUBLE
Cross Reference | NSN 5975-01-322-4885
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| M19622/7-007 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| MIL-S-19622/7 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
Technical Data | NSN 5975-01-322-4885
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SLOTTED-DOUBLE |
| COUNTERBORE DIAMETER | 2.375 INCHES NOMINAL |
| COUNTERBORE DEPTH | 0.375 INCHES NOMINAL |
| SLOT DEPTH | 0.187 INCHES NOMINAL |
| SLOT WIDTH | 0.500 INCHES NOMINAL |
| SLOT LENGTH | 0.375 INCHES NOMINAL |
| OVERALL LENGTH | 2.906 INCHES NOMINAL |
| BORE DIAMETER | 1.688 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 3.375 INCHES NOMINAL |
| FIRST PACKING CHAMBER INSIDE DIAMETER | 1.938 INCHES NOMINAL |
| FIRST PACKING CHAMBER LENGTH | 1.500 INCHES NOMINAL |
| FIRST END CHAMFER ANGLE | 10.0 DEGREES NOMINAL |
