NSN 5975-01-311-2520
Part Details | ELECTRONIC JUNCTION RACK
5975-01-311-2520 An open frame structure specifically designed to accommodate (but does not include) electronic terminal junctions (TERMINAL BOARD; TERMINAL (1), FEEDTHRU; and the like). The item may consist of separable or nonseparable channels, mounting blocks and fastening devices. Mounting blocks are designed so the assembly can be mounted on panels or bulkheads. Tightening the fastening devices which secure the channels to the mounting blocks will also secure terminal junctions within the frame assembly. Excludes RACK, ELECTRICAL EQUIPMENT; TERMINAL BOARD; JUNCTION BOX; and HARDWARE KIT, ELECTRONIC EQUIPMENT.
Alternate Parts: TJT703009, M81714168, M81714/16-8, MILT8171416, MIL-T-81714/16, 5975-01-311-2520, 01-311-2520, 5975013112520, 013112520
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | NOV 22, 1989 | 01-311-2520 | 32039 ( RACK, ELECTRONIC JUNCTION ) |
REFERENCE DRAWINGS & PICTURES

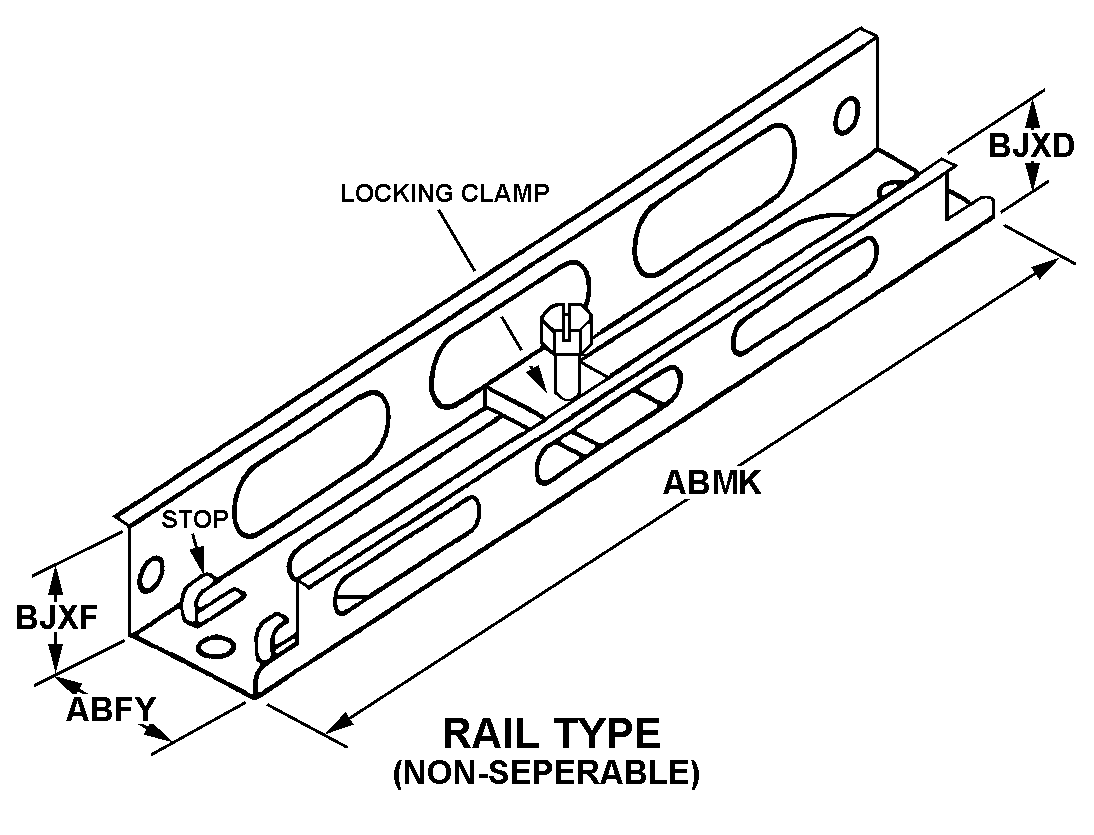

RAIL TYPE
Cross Reference | NSN 5975-01-311-2520
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| TJT703009 | 58982 | AMPHENOL PCD, INC. |
| M81714/16-8 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| MIL-T-81714/16 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
Technical Data | NSN 5975-01-311-2520
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | RAIL TYPE |
| OVERALL DEPTH | 1.120 INCHES NOMINAL |
| OVERALL WIDTH | 4.901 INCHES NOMINAL |
| MINOR CHANNEL HEIGHT | 0.750 INCHES NOMINAL |
| MAJOR CHANNEL HEIGHT | 0.953 INCHES NOMINAL |
| MATERIAL | ALUMINUM ALLOY |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-200 TO 9 6063,TEMPER T5 FED SPEC SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | ANODIZE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625,TYPE II,CLASS 2,BLACK MIL SPEC SINGLE TREATMENT RESPONSE |
