NSN 5975-01-310-5015
Part Details | STUFFING TUBE
5975-01-310-5015 An item specifically designed to pass an electrical cable or tube through a continuous structure with provisions for packing so as to prevent the leakage of liquids and/or gases through the opening. May include packing nut(s), adapter(s), washer(s), gasket(s), bushing(s), packing(s), cap(s), and/or plug(s).
Alternate Parts: 1260D0009, 1260D0009, 5975-01-310-5015, 01-310-5015, 5975013105015, 013105015
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | NOV 04, 1989 | 01-310-5015 | 00882 ( STUFFING TUBE ) |
REFERENCE DRAWINGS & PICTURES

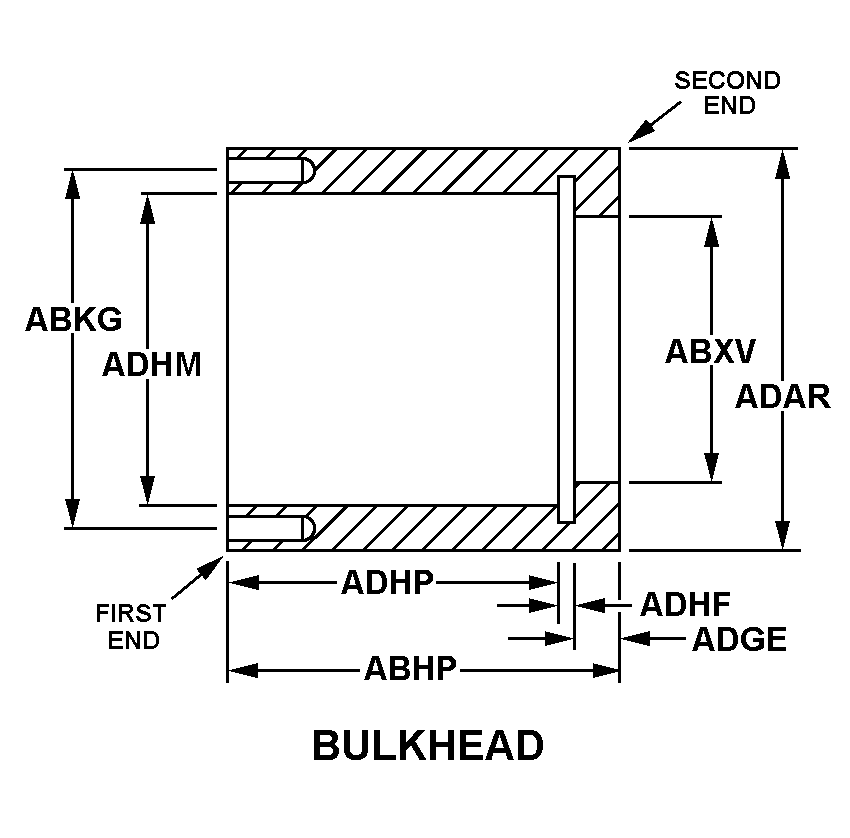

BULKHEAD
Cross Reference | NSN 5975-01-310-5015
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1260D0009 | 03538 | LOCKHEED MARTIN CORPORATIONDIV RMS |
| 1260D0009 | 54497 | MARTIN MARIETTA TECHNOLOGIES INCSUB OF MARTIN MARIETTA CORP |
Technical Data | NSN 5975-01-310-5015
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | BULKHEAD |
| OVERALL LENGTH | 3.580 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 2.821 INCHES NOMINAL |
