NSN 5975-01-305-3103
Part Details | ELECTRICAL-ELECTRONIC EQUIPMENT CHASSIS
5975-01-305-3103 A box, frame, or plate fabricated of electrically conductive material designed to mount, but which does not include, electronic components and their associated circuitry. It may have facilities for attachment to a rack or cabinet or to accommodate specially designed components. It may include a shielding function, integral wiring, and mounting hardware as part of the item. Excludes MOUNTING BASE, ELECTRICAL EQUIPMENT.
Alternate Parts: 658803001, 658803-001, 5975-01-305-3103, 01-305-3103, 5975013053103, 013053103
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | AUG 03, 1989 | 01-305-3103 | 38671 ( CHASSIS, ELECTRICAL-ELECTRONIC EQUIPMENT ) |
REFERENCE DRAWINGS & PICTURES

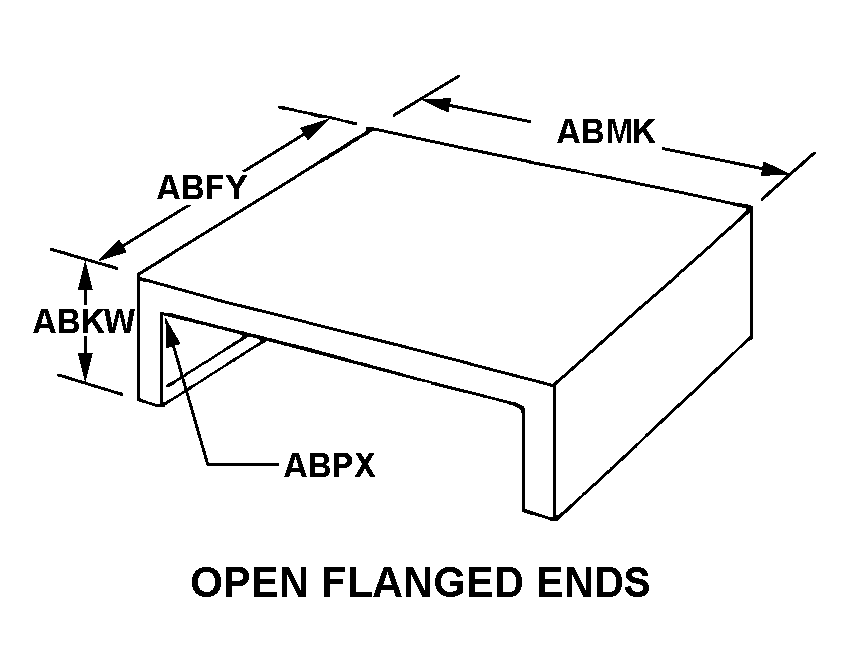

OPEN FLANGED ENDS
Cross Reference | NSN 5975-01-305-3103
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 658803-001 | 14482 | WATKINS-JOHNSON CO |
Technical Data | NSN 5975-01-305-3103
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | OPEN FLANGED ENDS |
| OVERALL DEPTH | 15.370 INCHES NOMINAL |
| OVERALL HEIGHT | 7.380 INCHES NOMINAL |
| OVERALL WIDTH | 19.500 INCHES NOMINAL |
| MOUNTING PROVISION | UNTHREADED HOLE |
| MOUNTING FACILITY QUANTITY | 333 |
