NSN 5975-01-300-4059
Part Details | STUFFING TUBE
5975-01-300-4059 An item specifically designed to pass an electrical cable or tube through a continuous structure with provisions for packing so as to prevent the leakage of liquids and/or gases through the opening. May include packing nut(s), adapter(s), washer(s), gasket(s), bushing(s), packing(s), cap(s), and/or plug(s).
Alternate Parts: 3224150L1, 3224150, 5975-01-300-4059, 01-300-4059, 5975013004059, 013004059
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | MAY 14, 1989 | 01-300-4059 | 00882 ( STUFFING TUBE ) |

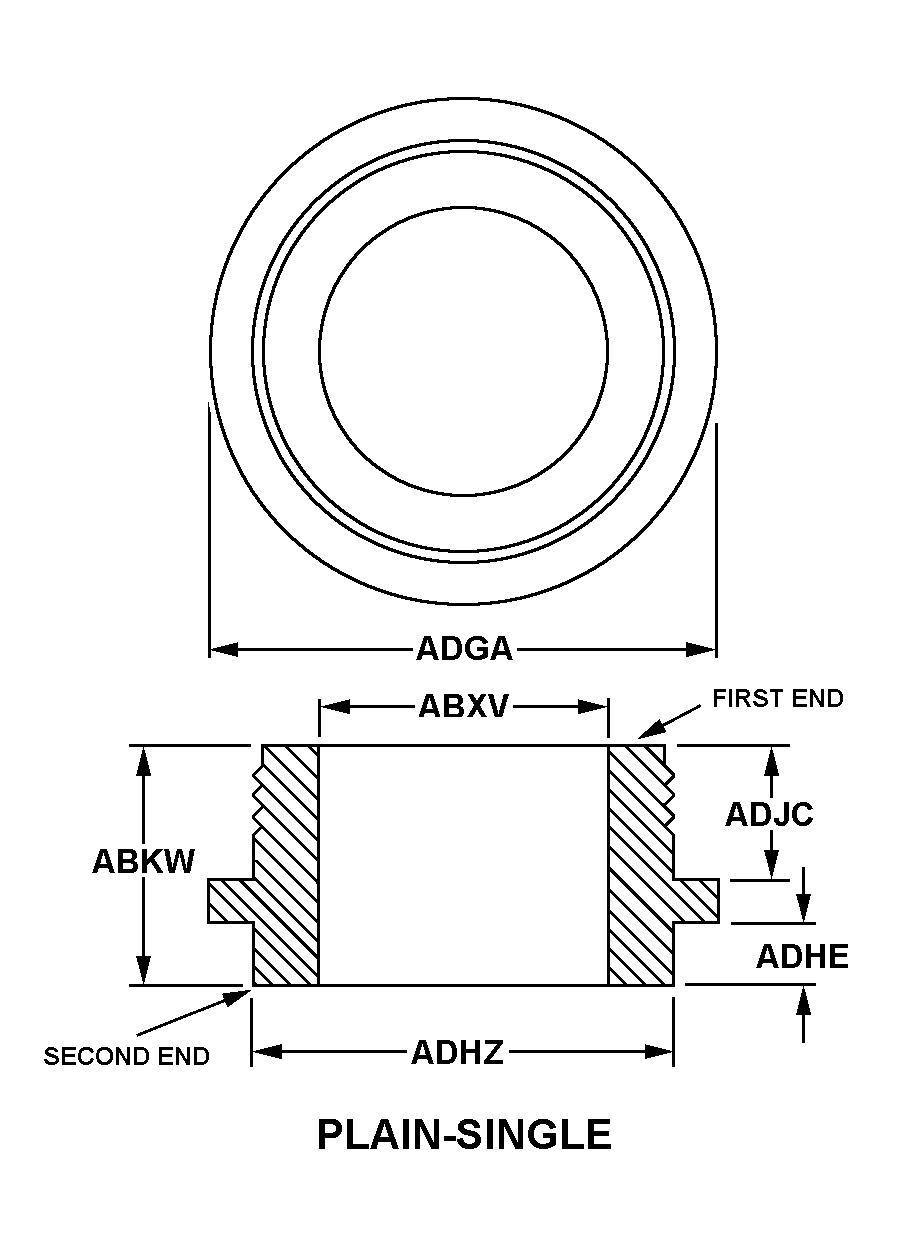

REFERENCE DRAWINGS & PICTURES
PLAIN-SINGLE
Cross Reference | NSN 5975-01-300-4059
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3224150L1 | 03950 | NAVAL INVENTORY CONTROL POINTMECHANICSBURG |
| 3224150 | 53711 | NAVAL SEA SYSTEMS COMMAND |
Technical Data | NSN 5975-01-300-4059
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | PLAIN-SINGLE |
| OVERALL HEIGHT | 1.250 INCHES NOMINAL |
| BORE DIAMETER | 1.242 INCHES MINIMUM AND 1.244 INCHES MAXIMUM |
| OVERALL OUTSIDE DIAMETER | 2.245 INCHES MINIMUM AND 2.255 INCHES MAXIMUM |
| MOUNTING OUTSIDE DIAMETER | 1.997 INCHES MINIMUM AND 1.999 INCHES MAXIMUM |
| DISTANCE FROM OUTSIDE EDGE OF FIRST PACKING CHAMBER TO EDGE OF MOUNTING FLANGE | 0.500 INCHES NOMINAL |
| REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | QUALITY CONTROL IN ACCORDANCE WITH NAVSHIPS 0948-045-7010 MATERIAL IDENTIFICATION AND CONTROL INSTRUCTION FOR LEVEL 1 ITEMS |
| CRITICALITY CODE JUSTIFICATION | ZZZY |
