NSN 5960-01-313-9388
Part Details | ELECTRON TUBE RETAINER
5960-01-313-9388 An item specifically designed to restrain the movement of an electron tube when the latter is mounted in another item, normally a tube socket. Includes clamps, clips, and similar restraining devices specifically designed for this function.
Alternate Parts: 627730497, 6277304-97, 5960-01-313-9388, 01-313-9388, 5960013139388, 013139388
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 20, 1990 | 01-313-9388 | 16182 ( RETAINER, ELECTRON TUBE ) |
REFERENCE DRAWINGS & PICTURES

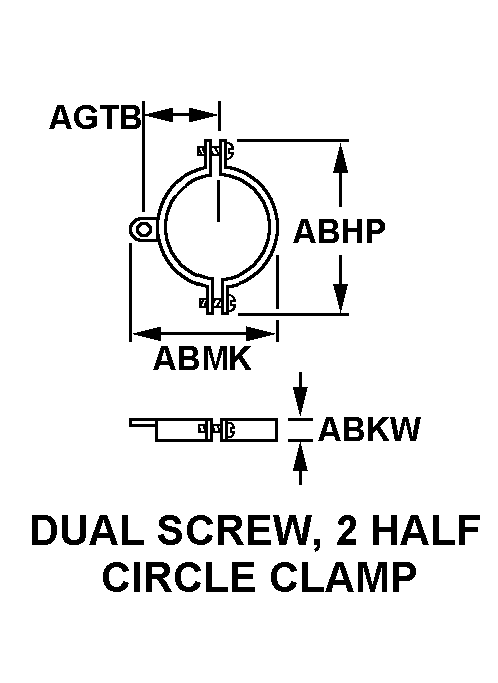

DUAL SCREW, 2 HALF CIRCLE CLAMP
Cross Reference | NSN 5960-01-313-9388
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 6277304-97 | 82577 | RAYTHEON COMPANYDBA RAYTHEON |
Technical Data | NSN 5960-01-313-9388
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 6061 |
| SURFACE TREATMENT | ANODIZE |
| STYLE DESIGNATOR | DUAL SCREW, 2 HALF CIRCLE CLAMP |
| OVERALL LENGTH | 3.800 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.125 INCHES MAXIMUM |
| OVERALL WIDTH | 1.150 INCHES MAXIMUM |
| DISTANCE FROM RETAINER CENTER TO CENTERLINE OF MOUNTING FACILITY | 1.290 INCHES MAXIMUM |
| ACCOMMODATED ITEM SECURING DEVICE TYPE | BRACKET AND CLAMP |
| ELECTRON TUBE BASE ACCOMMODATED DIAMETER | +1.754 TO +1.900 INCHES |
