NSN 5960-01-271-4820
Part Details | ELECTRON TUBE SHIELD
5960-01-271-4820 An item specifically designed to be placed partially or completely around an electron tube for the purpose of shielding against electrical or mechanical interference or physical damage. May include mounting facilities. See also COVER (as modified); HOUSING (as modified) and VISOR (as modified).
Alternate Parts: 7706805101, 77-068051-01, 7706805101, 77-068051-01, 5960-01-271-4820, 01-271-4820, 5960012714820, 012714820
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 26, 1988 | 01-271-4820 | 10195 ( SHIELD, ELECTRON TUBE ) |
REFERENCE DRAWINGS & PICTURES

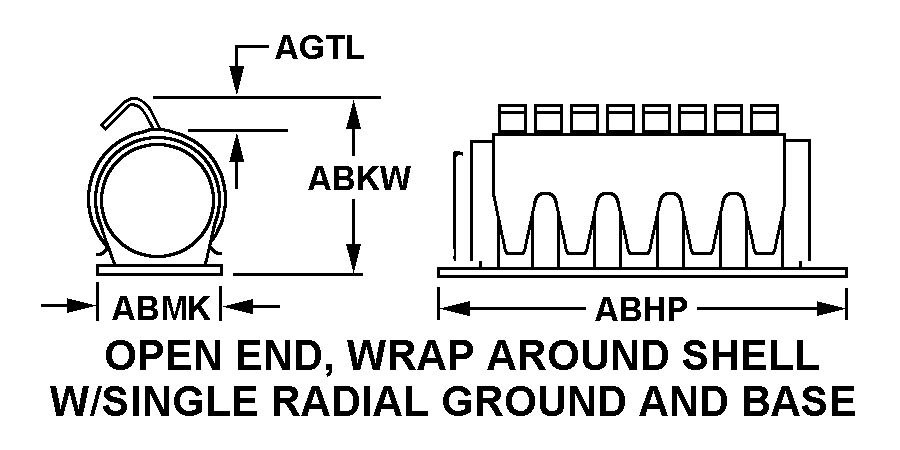

OPEN END, WRAP AROUND SHELL W/SINGLE RADIAL GROUND AND BASE
Cross Reference | NSN 5960-01-271-4820
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 77-068051-01 | 15280 | NORTHROP GRUMMAN SYSTEMS CORPORATIONDIV ES DEFENSIVE SYSTEMS DIVISION |
| 77-068051-01 | 26916 | NORTHROP GRUMMAN SYSTEMS CORPORATIONDIV MULTIPLE |
Technical Data | NSN 5960-01-271-4820
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | OPEN END, WRAP AROUND SHELL W/SINGLE RADIAL GROUND AND BASE |
| OVERALL LENGTH | 3.500 INCHES NOMINAL |
| OVERALL WIDTH | 1.870 INCHES NOMINAL |
