NSN 5960-01-197-4461
Part Details | ELECTRON TUBE SHIELD
5960-01-197-4461 An item specifically designed to be placed partially or completely around an electron tube for the purpose of shielding against electrical or mechanical interference or physical damage. May include mounting facilities. See also COVER (as modified); HOUSING (as modified) and VISOR (as modified).
Alternate Parts: 10090957101, 10090957-101, 10090957101, 10090957-101, 5960-01-197-4461, 01-197-4461, 5960011974461, 011974461
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | DEC 21, 1984 | 01-197-4461 | 10195 ( SHIELD, ELECTRON TUBE ) |
REFERENCE DRAWINGS & PICTURES

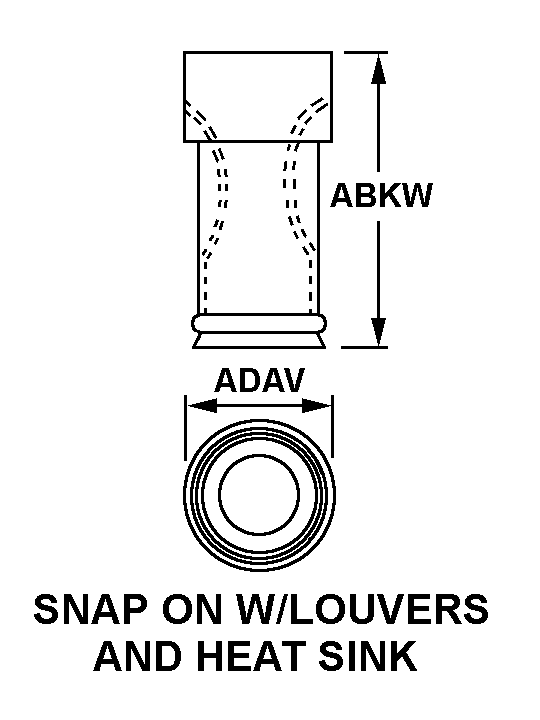

SNAP ON W/LOUVERS AND HEAT SINK
Cross Reference | NSN 5960-01-197-4461
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10090957-101 | 0WEC9 | EFW INC. |
| 10090957-101 | 94580 | HONEYWELL INTERNATIONAL INC.DBA HONEYWELL |
Technical Data | NSN 5960-01-197-4461
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SNAP ON W/LOUVERS AND HEAT SINK |
| OVERALL HEIGHT | 1.660 INCHES NOMINAL |
| OVERALL DIAMETER | 1.099 INCHES NOMINAL |
| SPECIAL FEATURES | DIMENSIONING AND TOLERANCING PER ANSI Y14.5-1973;.9375 40UNS-2A LH |
| END ITEM IDENTIFICATION | 8888-00-888-1987 |
