NSN 5960-01-098-0042
Part Details | ELECTRON TUBE SHIELD
5960-01-098-0042 An item specifically designed to be placed partially or completely around an electron tube for the purpose of shielding against electrical or mechanical interference or physical damage. May include mounting facilities. See also COVER (as modified); HOUSING (as modified) and VISOR (as modified).
Alternate Parts: SMC448978, 5960-01-098-0042, 01-098-0042, 5960010980042, 010980042
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUL 24, 1980 | 01-098-0042 | 10195 ( SHIELD, ELECTRON TUBE ) |

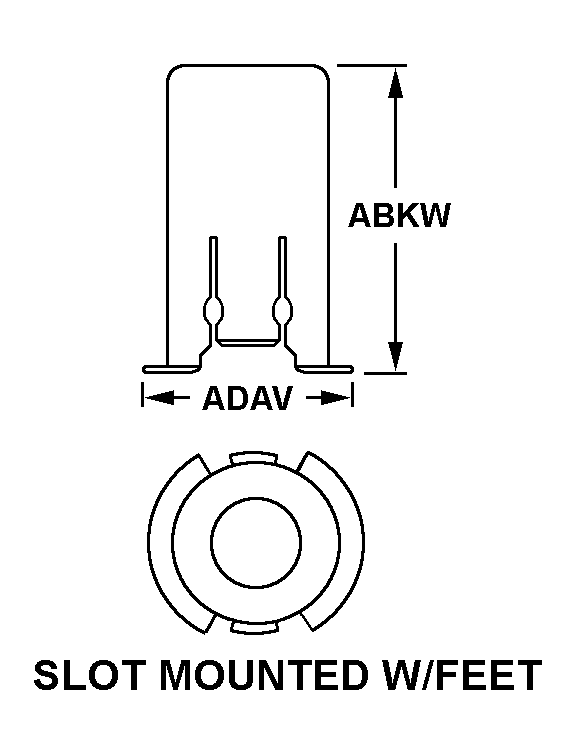

REFERENCE DRAWINGS & PICTURES
SLOT MOUNTED W/FEET
Cross Reference | NSN 5960-01-098-0042
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SMC448978 | 80063 | US ARMY COMMUNICATIONS &ELECTRONICS MATERIEL READINESS |
Technical Data | NSN 5960-01-098-0042
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 1100 |
| STYLE DESIGNATOR | SLOT MOUNTED W/FEET |
| OVERALL HEIGHT | 1.340 INCHES NOMINAL |
