NSN 5960-00-974-6829
Part Details | ELECTRON TUBE SHIELD
5960-00-974-6829 An item specifically designed to be placed partially or completely around an electron tube for the purpose of shielding against electrical or mechanical interference or physical damage. May include mounting facilities. See also COVER (as modified); HOUSING (as modified) and VISOR (as modified).
Alternate Parts: T330415B, T3-3041-5B, 1888032, 188803-2, 5960-00-974-6829, 00-974-6829, 5960009746829, 009746829
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | OCT 10, 1966 | 00-974-6829 | 10195 ( SHIELD, ELECTRON TUBE ) |
REFERENCE DRAWINGS & PICTURES

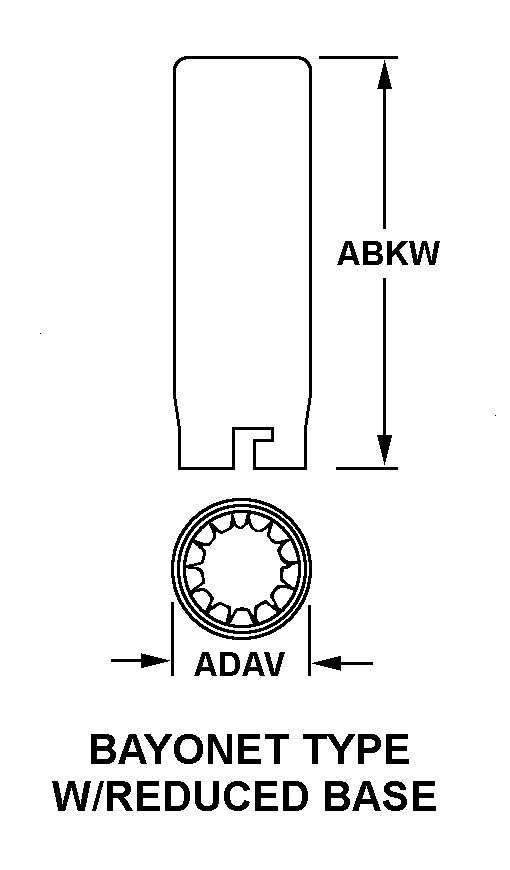

BAYONET TYPE W/REDUCED BASE
Cross Reference | NSN 5960-00-974-6829
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| T3-3041-5B | 98978 | CTS ELECTRONIC COMPONENTS CALIFORNIAINC |
| 188803-2 | 37695 | RAYTHEON COMPANYDBA RAYTHEON |
Technical Data | NSN 5960-00-974-6829
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY |
| SURFACE TREATMENT | ANODIZE |
| STYLE DESIGNATOR | BAYONET TYPE W/REDUCED BASE |
| OVERALL HEIGHT | 1.875 INCHES NOMINAL |
| OVERALL DIAMETER | 0.500 INCHES NOMINAL |
| EIA ELECTRON TUBE ENVELOPE ACCOMMODATED | T3 3-3 |
