NSN 5960-00-971-5707
Part Details | ELECTRON TUBE RETAINER
5960-00-971-5707 An item specifically designed to restrain the movement of an electron tube when the latter is mounted in another item, normally a tube socket. Includes clamps, clips, and similar restraining devices specifically designed for this function.
Alternate Parts: 1949900088, 5960-00-971-5707, 00-971-5707, 5960009715707, 009715707
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1962 | 00-971-5707 | 16182 ( RETAINER, ELECTRON TUBE ) |
REFERENCE DRAWINGS & PICTURES

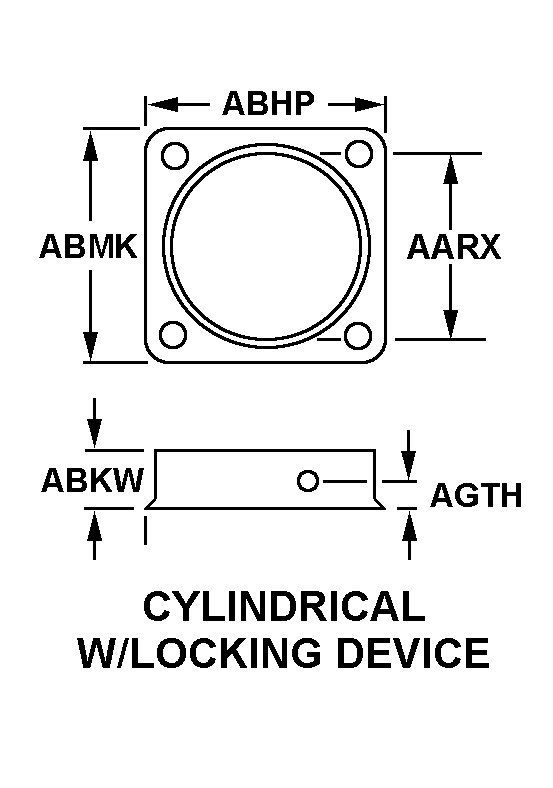

CYLINDRICAL W/LOCKING DEVICE
Cross Reference | NSN 5960-00-971-5707
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1949900088 | 57057 | NAVCOM DEFENSE ELECTRONICS, INC. |
Technical Data | NSN 5960-00-971-5707
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING |
| SURFACE TREATMENT | ANY ACCEPTABLE |
| STYLE DESIGNATOR | CYLINDRICAL W/LOCKING DEVICE |
| INSIDE DIAMETER | 1.800 INCHES NOMINAL |
| OVERALL LENGTH | 2.625 INCHES NOMINAL |
| OVERALL HEIGHT | 0.560 INCHES NOMINAL |
| OVERALL WIDTH | 2.625 INCHES NOMINAL |
| DISTANCE FROM MOUNTING SURFACE TO LOCKING DEVICE | 0.171 INCHES NOMINAL |
| ACCOMMODATED ITEM SECURING DEVICE TYPE | CLAMP |
| TUBE ENVELOPE ACCOMMODATED MAXIMUM DIAMETER | 1.625 INCHES |
