NSN 5960-00-944-9325
Part Details | ELECTRON TUBE RETAINER
5960-00-944-9325 An item specifically designed to restrain the movement of an electron tube when the latter is mounted in another item, normally a tube socket. Includes clamps, clips, and similar restraining devices specifically designed for this function.
Alternate Parts: L2088453, L208845-3, L2088450003, L208845-0003, 5960-00-944-9325, 00-944-9325, 5960009449325, 009449325
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | MAR 04, 1966 | 00-944-9325 | 16182 ( RETAINER, ELECTRON TUBE ) |
REFERENCE DRAWINGS & PICTURES

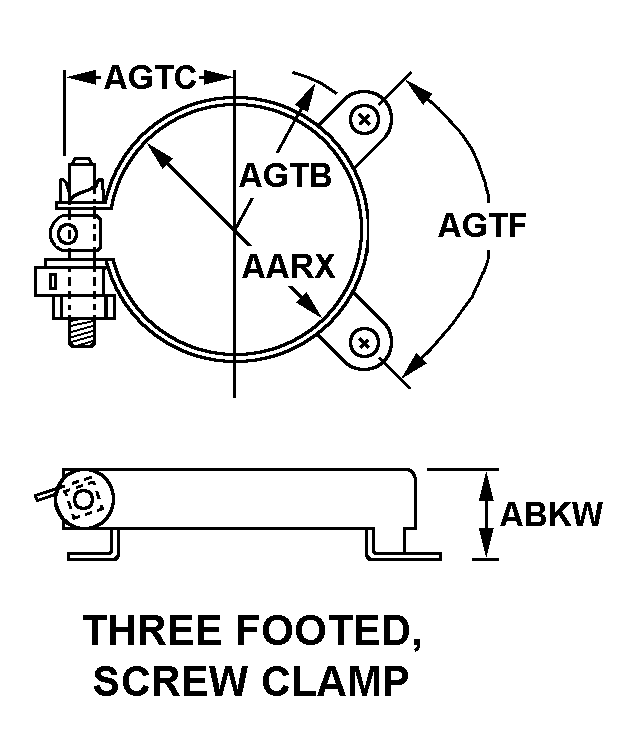

THREE FOOTED, SCREW CLAMP
Cross Reference | NSN 5960-00-944-9325
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| L208845-3 | 27914 | HONEYWELL INTERNATIONAL INCDBA HONEYWELL |
| L208845-0003 | 27914 | HONEYWELL INTERNATIONAL INCDBA HONEYWELL |
Technical Data | NSN 5960-00-944-9325
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| STYLE DESIGNATOR | THREE FOOTED, SCREW CLAMP |
| INSIDE DIAMETER | 1.000 INCHES NOMINAL |
| OVERALL HEIGHT | 0.562 INCHES NOMINAL |
| DISTANCE FROM RETAINER CENTER TO CENTERLINE OF MOUNTING FACILITY | 0.718 INCHES NOMINAL |
| DISTANCE FROM RETAINER CENTER TO MOUNTING FACILITY CENTER AT LOOP TIGHTENING DEVICE | 0.656 INCHES NOMINAL |
| ANGLE BETWEEN ADJACENT MOUNTING FACILITIES IN DEG | 180.0 |
| ACCOMMODATED ITEM SECURING DEVICE TYPE | CLAMP |
| TUBE ENVELOPE ACCOMMODATED MAXIMUM DIAMETER | 1.000 INCHES |
| FEATURES PROVIDED | POST LOCKING TAB |
