NSN 5960-00-942-7193
Part Details | ELECTRON TUBE SHIELD
5960-00-942-7193 An item specifically designed to be placed partially or completely around an electron tube for the purpose of shielding against electrical or mechanical interference or physical damage. May include mounting facilities. See also COVER (as modified); HOUSING (as modified) and VISOR (as modified).
Alternate Parts: T6P2426S12, 5960-00-942-7193, 00-942-7193, 5960009427193, 009427193
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | DEC 25, 1965 | 00-942-7193 | 10195 ( SHIELD, ELECTRON TUBE ) |
REFERENCE DRAWINGS & PICTURES

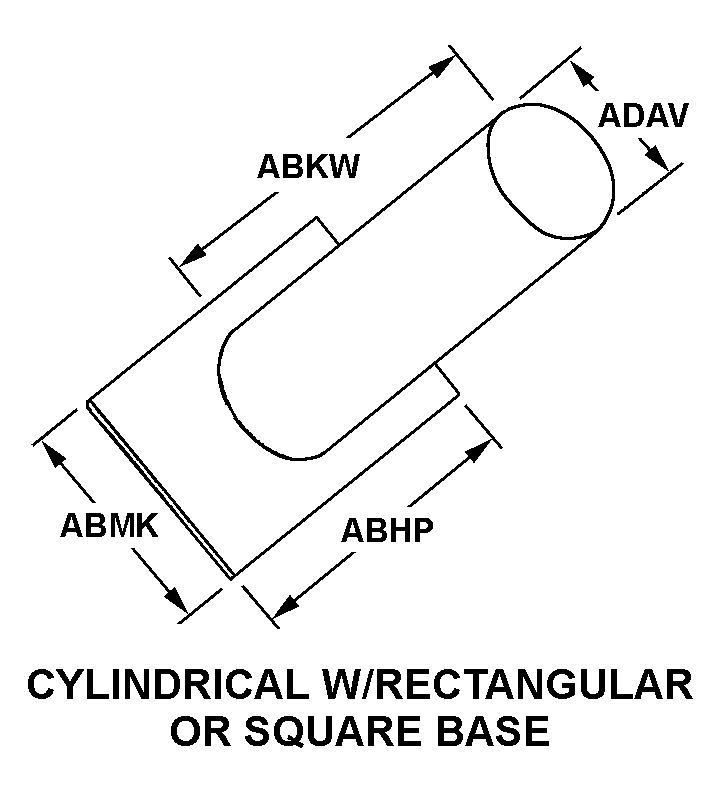

CYLINDRICAL W/RECTANGULAR OR SQUARE BASE
Cross Reference | NSN 5960-00-942-7193
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| T6P2426S12 | 98978 | CTS ELECTRONIC COMPONENTS CALIFORNIAINC |
Technical Data | NSN 5960-00-942-7193
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER |
| STYLE DESIGNATOR | CYLINDRICAL W/RECTANGULAR OR SQUARE BASE |
| OVERALL LENGTH | 1.250 INCHES NOMINAL |
| OVERALL HEIGHT | 1.600 INCHES NOMINAL |
| OVERALL WIDTH | 1.100 INCHES NOMINAL |
| TUBE ACCOMMODATED MAXIMUM HEIGHT | 0.938 INCHES |
| TUBE ENVELOPE ACCOMMODATED MAXIMUM DIAMETER | 0.160 INCHES |
