NSN 5960-00-901-4908
Part Details | ELECTRON TUBE SHIELD
5960-00-901-4908 An item specifically designed to be placed partially or completely around an electron tube for the purpose of shielding against electrical or mechanical interference or physical damage. May include mounting facilities. See also COVER (as modified); HOUSING (as modified) and VISOR (as modified).
Alternate Parts: T1230352NH, T12-3035-2NH, 4146876, 414687-6, 5960-00-901-4908, 00-901-4908, 5960009014908, 009014908
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1960 | 00-901-4908 | 10195 ( SHIELD, ELECTRON TUBE ) |
REFERENCE DRAWINGS & PICTURES

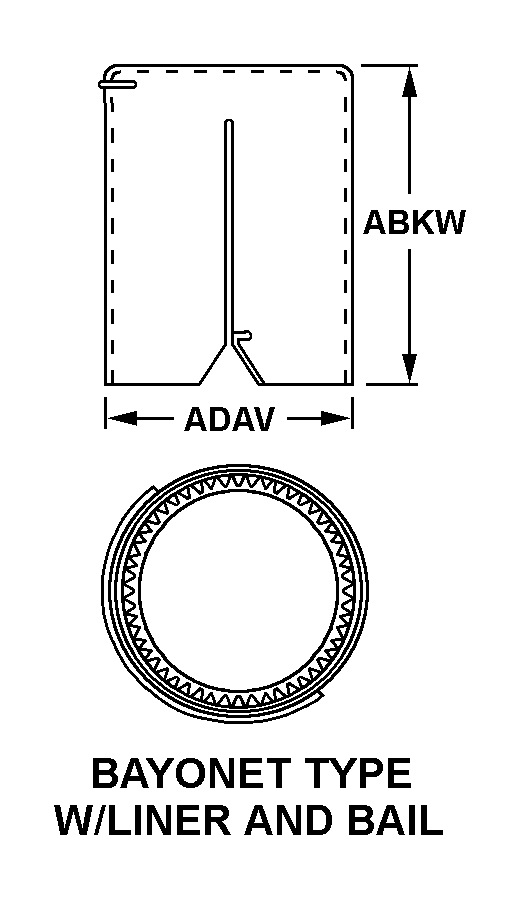

BAYONET TYPE W/LINER AND BAIL
Cross Reference | NSN 5960-00-901-4908
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| T12-3035-2NH | 98978 | CTS ELECTRONIC COMPONENTS CALIFORNIAINC |
| 414687-6 | 96214 | RAYTHEON COMPANYDBA RAYTHEON |
Technical Data | NSN 5960-00-901-4908
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY 172 |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-C-533 FED SPEC SINGLE MATERIAL RESPONSE |
| STYLE DESIGNATOR | BAYONET TYPE W/LINER AND BAIL |
| OVERALL HEIGHT | 3.500 INCHES NOMINAL |
| OVERALL DIAMETER | 1.750 INCHES NOMINAL |
| ACCOMMODATED ITEM SECURING DEVICE TYPE | FRICTION FASTENER |
| TUBE ENVELOPE ACCOMMODATED MAXIMUM DIAMETER | 1.500 INCHES |
| FEATURES PROVIDED | LINER |
