NSN 5960-00-858-1168
Part Details | ELECTRON TUBE RETAINER
5960-00-858-1168 An item specifically designed to restrain the movement of an electron tube when the latter is mounted in another item, normally a tube socket. Includes clamps, clips, and similar restraining devices specifically designed for this function.
Alternate Parts: 475, 5960-00-858-1168, 00-858-1168, 5960008581168, 008581168
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1962 | 00-858-1168 | 16182 ( RETAINER, ELECTRON TUBE ) |
REFERENCE DRAWINGS & PICTURES

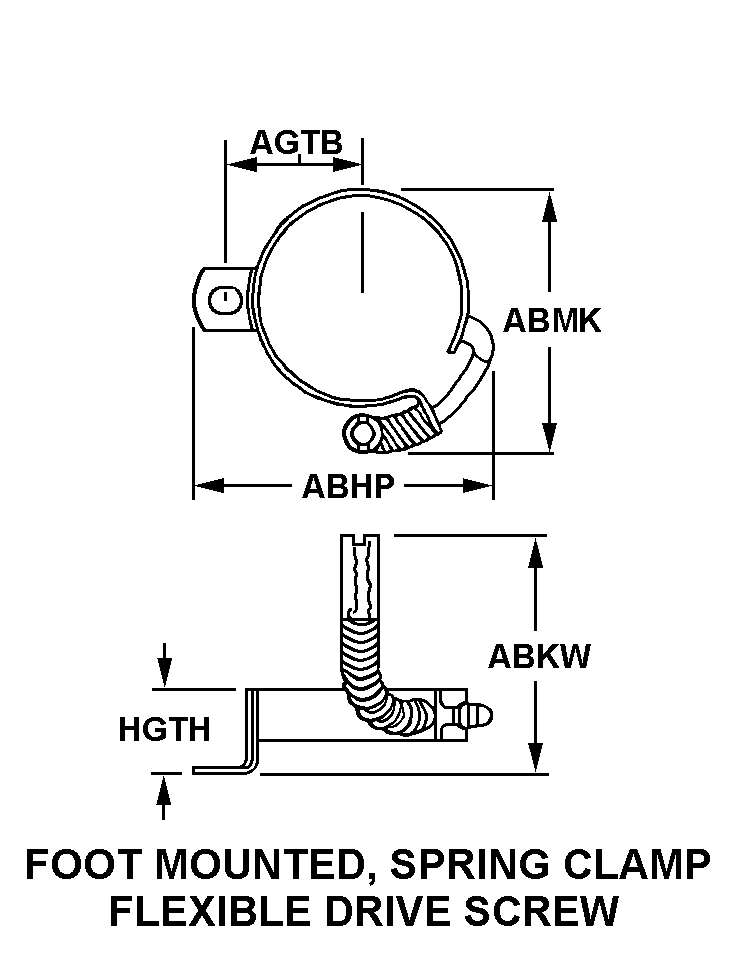

FOOT MOUNTED, SPRING CLAMP FLEXIBLE DRIVE SCREW
Cross Reference | NSN 5960-00-858-1168
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 475 | 07157 | KESTLER ELECTRONICS |
Technical Data | NSN 5960-00-858-1168
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING |
| SURFACE TREATMENT | CHROMIUM AND NICKEL |
| STYLE DESIGNATOR | FOOT MOUNTED, SPRING CLAMP FLEXIBLE DRIVE SCREW |
| OVERALL LENGTH | 1.375 INCHES NOMINAL |
| OVERALL HEIGHT | 2.020 INCHES NOMINAL |
| OVERALL WIDTH | 2.000 INCHES NOMINAL |
| DISTANCE FROM RETAINER CENTER TO CENTERLINE OF MOUNTING FACILITY | 1.090 INCHES NOMINAL |
| HEIGHT | 1.000 INCHES NOMINAL |
| ACCOMMODATED ITEM SECURING DEVICE TYPE | CLAMP |
| ELECTRON TUBE BASE ACCOMMODATED DIAMETER | +1.453 TO +1.546 INCHES |
