NSN 5960-00-825-6442
Part Details | ELECTRON TUBE SHIELD
5960-00-825-6442 An item specifically designed to be placed partially or completely around an electron tube for the purpose of shielding against electrical or mechanical interference or physical damage. May include mounting facilities. See also COVER (as modified); HOUSING (as modified) and VISOR (as modified).
Alternate Parts: T3425FPNTL, T3-425FPNTL, 58A5A2773, 58A5A277-3, 5960-00-825-6442, 00-825-6442, 5960008256442, 008256442
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1962 | 00-825-6442 | 10195 ( SHIELD, ELECTRON TUBE ) |
REFERENCE DRAWINGS & PICTURES

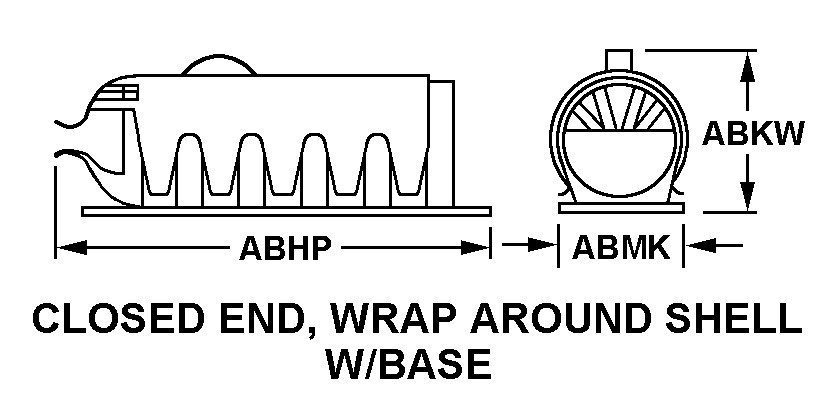

CLOSED END, WRAP AROUND SHELL W/BASE
Cross Reference | NSN 5960-00-825-6442
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| T3-425FPNTL | 98978 | CTS ELECTRONIC COMPONENTS CALIFORNIAINC |
| 58A5A277-3 | 10001 | NAVAIR AND NAVSEA MANAGEDORIGINAL DESIGN ACTIVITY DWG NOT |
Technical Data | NSN 5960-00-825-6442
| Characteristic | Specifications |
|---|---|
| MATERIAL | G000 ANY ACCEPTABLE AND COPPER ALLOY 170 |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-C-533 FED SPEC 2ND MATERIAL RESPONSE |
| SURFACE TREATMENT | G000 ANY ACCEPTABLE |
| STYLE DESIGNATOR | CLOSED END, WRAP AROUND SHELL W/BASE |
| OVERALL LENGTH | 1.500 INCHES NOMINAL |
| OVERALL HEIGHT | 0.440 INCHES NOMINAL |
| OVERALL WIDTH | 0.490 INCHES NOMINAL |
| ACCOMMODATED ITEM SECURING DEVICE TYPE | FRICTION FASTENER |
| EIA ELECTRON TUBE ENVELOPE ACCOMMODATED | T3 3-2 |
| PRECIOUS MATERIAL | SILVER |
