NSN 5960-00-502-4896
Part Details | ELECTRON TUBE RETAINER
5960-00-502-4896 An item specifically designed to restrain the movement of an electron tube when the latter is mounted in another item, normally a tube socket. Includes clamps, clips, and similar restraining devices specifically designed for this function.
Alternate Parts: T1420002H, T14-2000-2H, 459347, 5960-00-502-4896, 00-502-4896, 5960005024896, 005024896
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUL 09, 1974 | 00-502-4896 | 16182 ( RETAINER, ELECTRON TUBE ) |
REFERENCE DRAWINGS & PICTURES

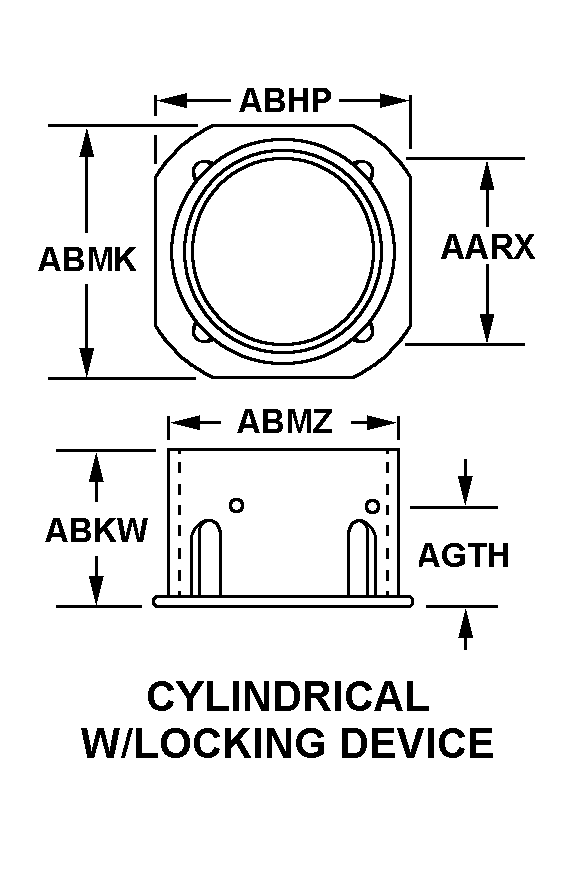

CYLINDRICAL W/LOCKING DEVICE
Cross Reference | NSN 5960-00-502-4896
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| T14-2000-2H | 98978 | CTS ELECTRONIC COMPONENTS CALIFORNIAINC |
| 459347 | 10001 | NAVAIR AND NAVSEA MANAGEDORIGINAL DESIGN ACTIVITY DWG NOT |
Technical Data | NSN 5960-00-502-4896
| Characteristic | Specifications |
|---|---|
| MATERIAL | ANY ACCEPTABLE |
| SURFACE TREATMENT | ANY ACCEPTABLE |
| STYLE DESIGNATOR | CYLINDRICAL W/LOCKING DEVICE |
| INSIDE DIAMETER | 2.000 INCHES MINIMUM AND 2.010 INCHES MAXIMUM |
| OVERALL LENGTH | 2.360 INCHES MINIMUM AND 2.400 INCHES MAXIMUM |
| OVERALL HEIGHT | 1.940 INCHES MINIMUM AND 2.060 INCHES MAXIMUM |
| OVERALL WIDTH | 2.360 INCHES MINIMUM AND 2.400 INCHES MAXIMUM |
| DIAMETER | 2.110 INCHES MINIMUM AND 2.130 INCHES MAXIMUM |
| DISTANCE FROM MOUNTING SURFACE TO LOCKING DEVICE | 0.780 INCHES MINIMUM AND 0.840 INCHES MAXIMUM |
