NSN 5960-00-351-4812
Part Details | ELECTRON TUBE SHIELD
5960-00-351-4812 An item specifically designed to be placed partially or completely around an electron tube for the purpose of shielding against electrical or mechanical interference or physical damage. May include mounting facilities. See also COVER (as modified); HOUSING (as modified) and VISOR (as modified).
Alternate Parts: 314491, 31449-1, 5960-00-351-4812, 00-351-4812, 5960003514812, 003514812
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-351-4812 | 10195 ( SHIELD, ELECTRON TUBE ) |
REFERENCE DRAWINGS & PICTURES

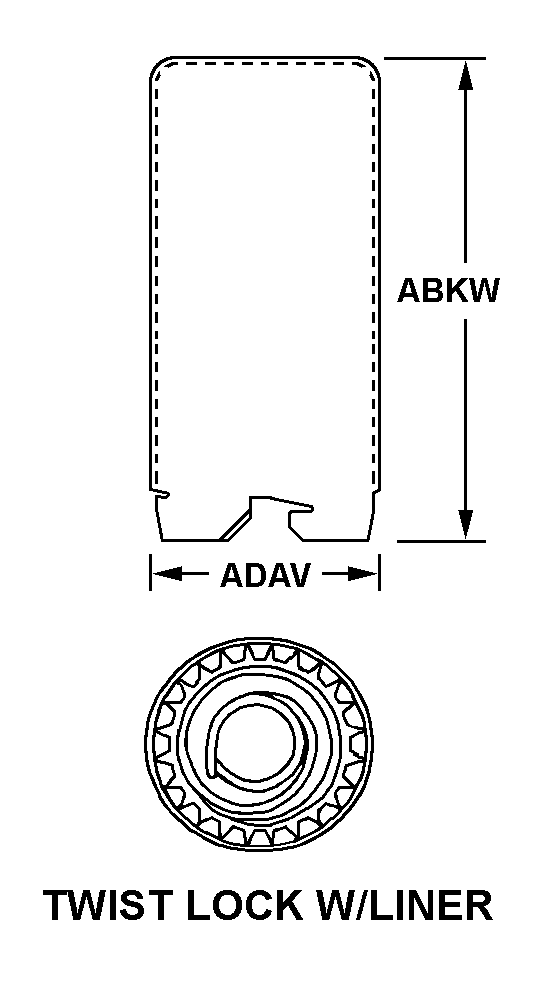

TWIST LOCK W/LINER
Cross Reference | NSN 5960-00-351-4812
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 31449-1 | 56394 | PAX MFG CORPHAMMARLUND MFG CO DIV |
Technical Data | NSN 5960-00-351-4812
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY |
| STYLE DESIGNATOR | TWIST LOCK W/LINER |
| OVERALL HEIGHT | 1.750 INCHES NOMINAL |
| OVERALL DIAMETER | 0.750 INCHES NOMINAL |
| ACCOMMODATED ITEM SECURING DEVICE TYPE | COMPRESSION SPRING |
| EIA ELECTRON TUBE ENVELOPE ACCOMMODATED | T5 1-2 5-2 |
