NSN 5960-00-300-2358
Part Details | ELECTRON TUBE RETAINER
5960-00-300-2358 An item specifically designed to restrain the movement of an electron tube when the latter is mounted in another item, normally a tube socket. Includes clamps, clips, and similar restraining devices specifically designed for this function.
Alternate Parts: 1003540, 1003540, 5960-00-300-2358, 00-300-2358, 5960003002358, 003002358
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-300-2358 | 16182 ( RETAINER, ELECTRON TUBE ) |
REFERENCE DRAWINGS & PICTURES

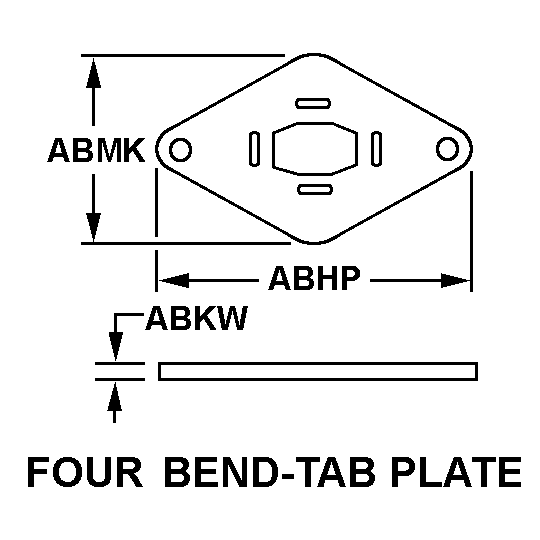

FOUR BEND-TAB PLATE
Cross Reference | NSN 5960-00-300-2358
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1003540 | 77068 | ALLIED-SIGNAL INCDBA ALLIED-SIGNAL AEROSPACE CO |
| 1003540 | 59364 | HONEYWELL INTERNATIONAL INC.DBA HONEYWELL |
Technical Data | NSN 5960-00-300-2358
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-318,H34 FED SPEC SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | PHOSPHATE |
| STYLE DESIGNATOR | FOUR BEND-TAB PLATE |
| OVERALL LENGTH | 4.000 INCHES NOMINAL |
| OVERALL HEIGHT | 0.380 INCHES NOMINAL |
| OVERALL WIDTH | 1.290 INCHES NOMINAL |
| ACCOMMODATED ITEM SECURING DEVICE TYPE | COMPRESSION SPRING |
| SPECIAL FEATURES | RETAINER HAS FOUR 0.505 IN. DIA THRU HOLES WITH MTG EARS |
