NSN 5960-00-265-7569
Part Details | ELECTRON TUBE RETAINER
5960-00-265-7569 An item specifically designed to restrain the movement of an electron tube when the latter is mounted in another item, normally a tube socket. Includes clamps, clips, and similar restraining devices specifically designed for this function.
Alternate Parts: GIRDER 211307569, P400628, P400-628, 5960-00-265-7569, 00-265-7569, 5960002657569, 002657569
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-265-7569 | 16182 ( RETAINER, ELECTRON TUBE ) |
REFERENCE DRAWINGS & PICTURES

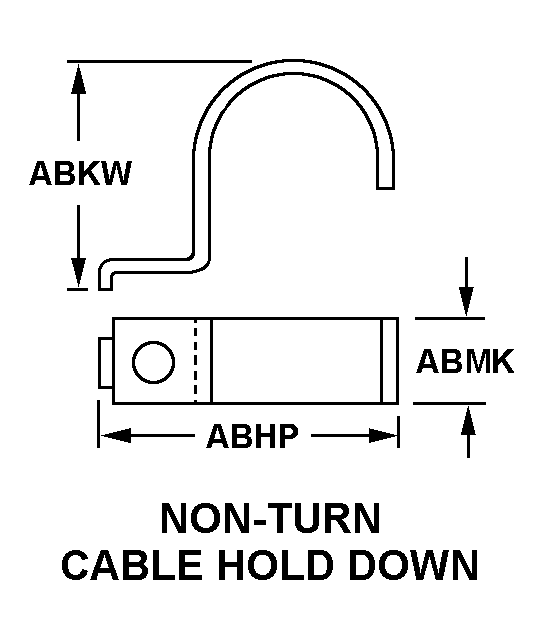

NON-TURN CABLE HOLD DOWN
Cross Reference | NSN 5960-00-265-7569
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| GIRDER 211307569 | 16236 | DLA LAND AND MARITIMEDBA ENGINEERING AND TECHNICAL |
| P400-628 | 24655 | GENRAD INC |
Technical Data | NSN 5960-00-265-7569
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING |
| SURFACE TREATMENT | ANY ACCEPTABLE |
| STYLE DESIGNATOR | NON-TURN CABLE HOLD DOWN |
| OVERALL LENGTH | 2.000 INCHES NOMINAL |
| OVERALL HEIGHT | 1.250 INCHES NOMINAL |
| OVERALL WIDTH | 0.750 INCHES NOMINAL |
| ACCOMMODATED ITEM SECURING DEVICE TYPE | CLAMP |
| EIA ELECTRON TUBE ENVELOPE ACCOMMODATED | T7 |
