NSN 5955-00-170-4426
Part Details | QUARTZ CRYSTAL HOLDER
5955-00-170-4426 An item designed to mechanically and electrically accommodate one or more crystal plates. It may include integral facilities for temperature control and/or capacitor(s). See also HOLDER, SEMICONDUCTOR DEVICE.
Alternate Parts: SCB20788, SC-B-20788, SCB20788, SC-B-20788, SCB22844, SC-B-22844, 5955-00-170-4426, 00-170-4426, 5955001704426, 001704426
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-170-4426 | 00197 ( HOLDER, QUARTZ CRYSTAL ) |
REFERENCE DRAWINGS & PICTURES

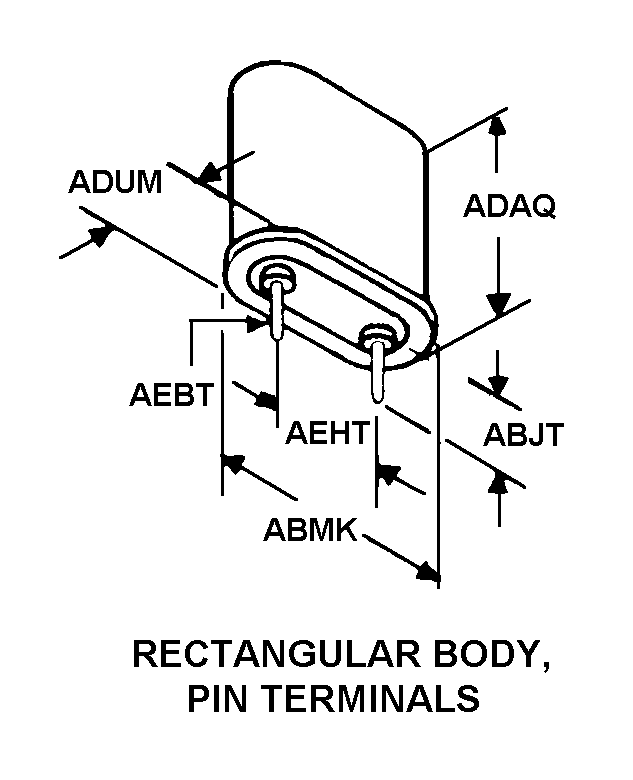

RECTANGULAR BODY, PIN TERMINALS
Cross Reference | NSN 5955-00-170-4426
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SC-B-20788 | 75378 | CTS INC |
| SC-B-20788 | 80063 | US ARMY COMMUNICATIONS &ELECTRONICS MATERIEL READINESS |
| SC-B-22844 | 80063 | US ARMY COMMUNICATIONS &ELECTRONICS MATERIEL READINESS |
Technical Data | NSN 5955-00-170-4426
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | RECTANGULAR BODY, PIN TERMINALS |
| TERMINAL LENGTH | 0.238 INCHES NOMINAL |
| OVERALL WIDTH | 0.750 INCHES NOMINAL |
| BODY LENGTH | 0.765 INCHES NOMINAL |
| OVERALL THICKNESS | 0.345 INCHES NOMINAL |
| TERMINAL DIAMETER | 0.050 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN TERMINALS | 0.486 INCHES NOMINAL |
| CRYSTAL PLATE QUANTITY ACCOMMODATED | 1 |
| INTEGRAL HEATING ELEMENT | NOT INCLUDED |
| NONDEFINITIVE SPEC/STD DATA | HC-6 TO U TYPE |
