NSN 5955-00-163-2988
Part Details | ELECTRICAL-ELECTRONIC COMPONENTS OVEN
5955-00-163-2988 An electrically heated compartment designed to accommodate and maintain at an essentially constant temperature, one or more components, such as, CRYSTAL UNIT(S), QUARTZ; tuned circuits; integrated circuit devices; and semiconductors. It prevents frequency drift and changes in teperature.
Alternate Parts: 97016300, 970-1630-0, 00606296014709, NF114, 5955-00-163-2988, 00-163-2988, 5955001632988, 001632988
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | AUG 21, 1972 | 00-163-2988 | 41012 ( OVEN, ELECTRICAL-ELECTRONIC COMPONENTS ) |

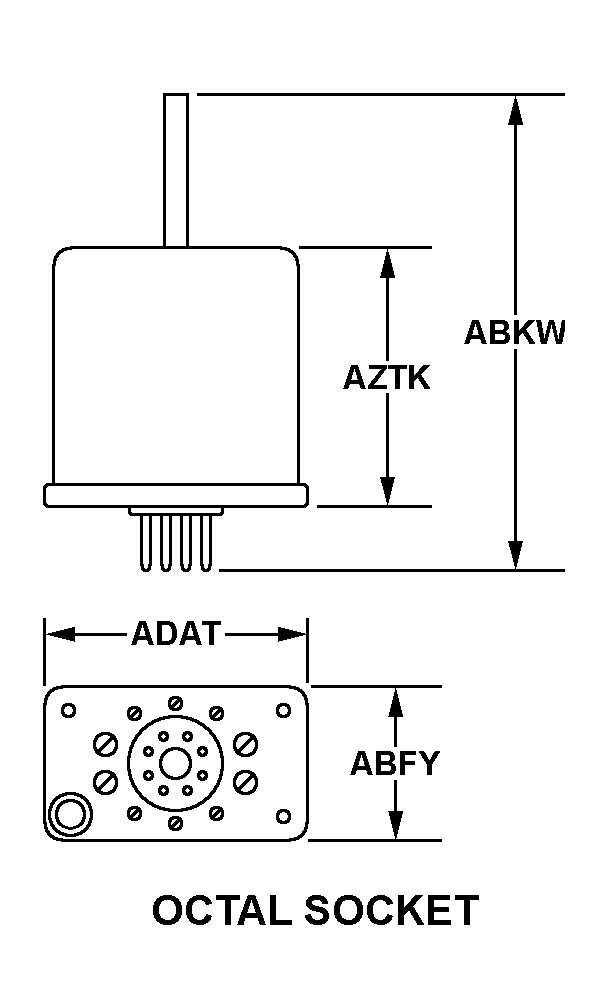

REFERENCE DRAWINGS & PICTURES
OCTAL SOCKET
Cross Reference | NSN 5955-00-163-2988
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 970-1630-0 | 75378 | CTS INC |
| 00606296014709 | 82679 | THE TECHNICAL MATERIAL CORPORATIONDBA T M C |
| NF114 | 82679 | THE TECHNICAL MATERIAL CORPORATIONDBA T M C |
Technical Data | NSN 5955-00-163-2988
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | OCTAL SOCKET |
| OVERALL DEPTH | 1.985 INCHES MINIMUM AND 2.015 INCHES MAXIMUM |
| OVERALL HEIGHT | 4.256 INCHES MAXIMUM |
| BODY WIDTH | 1.985 INCHES MINIMUM AND 2.015 INCHES MAXIMUM |
| BODY OVERALL HEIGHT | 4.031 INCHES MAXIMUM |
| COMPONENT TYPE AND QUANTITY ACCOMMODATED | 1 CRYSTAL |
| FURNISHED CRYSTAL UNIT SPECIFIED FREQUENCY | 1.000 MEGAHERTZ |
| INCLOSURE TYPE | HERMETICALLY SEALED |
| HEATER ELEMENT OPERATING VOLTAGE RATING IN VOLTS AND TYPE | 28.0 DC NOMINAL |
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.138 INCHES |
| MOUNTING STUD LENGTH | 0.630 INCHES MAXIMUM |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 1.250 INCHES MINIMUM AND 1.375 INCHES MAXIMUM |
| TERMINAL TYPE AND QUANTITY | 8 PIN |
