NSN 5955-00-161-0729
Part Details | QUARTZ CRYSTAL HOLDER
5955-00-161-0729 An item designed to mechanically and electrically accommodate one or more crystal plates. It may include integral facilities for temperature control and/or capacitor(s). See also HOLDER, SEMICONDUCTOR DEVICE.
Alternate Parts: SCD20032, 5955-00-161-0729, 00-161-0729, 5955001610729, 001610729
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-161-0729 | 00197 ( HOLDER, QUARTZ CRYSTAL ) |
REFERENCE DRAWINGS & PICTURES

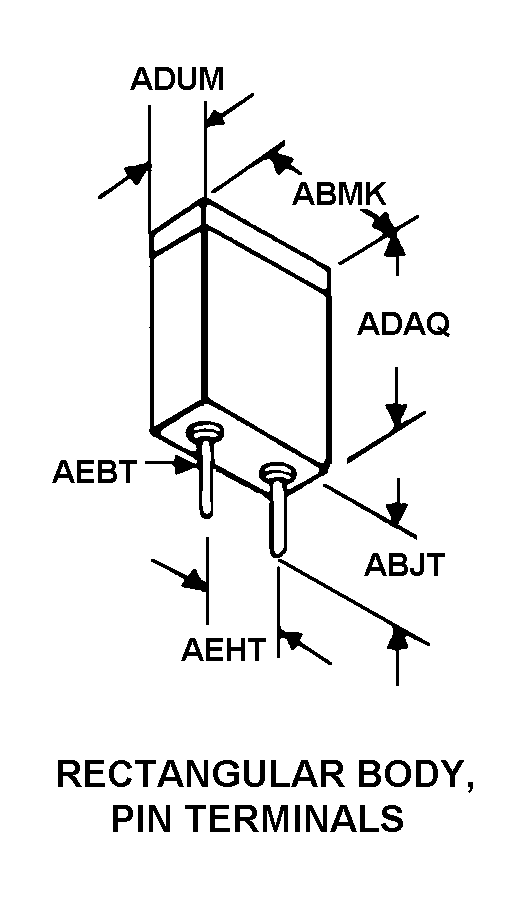

RECTANGULAR BODY, PIN TERMINALS
Cross Reference | NSN 5955-00-161-0729
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SCD20032 | 80063 | US ARMY COMMUNICATIONS &ELECTRONICS MATERIEL READINESS |
Technical Data | NSN 5955-00-161-0729
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | RECTANGULAR BODY, PIN TERMINALS |
| TERMINAL LENGTH | 0.359 INCHES NOMINAL |
| OVERALL WIDTH | 0.813 INCHES NOMINAL |
| BODY LENGTH | 1.234 INCHES NOMINAL |
| OVERALL THICKNESS | 0.438 INCHES NOMINAL |
| TERMINAL DIAMETER | 0.094 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN TERMINALS | 0.484 INCHES NOMINAL |
| CRYSTAL PLATE QUANTITY ACCOMMODATED | 1 |
| INTEGRAL HEATING ELEMENT | NOT INCLUDED |
| SPECIAL FEATURES | 0.580 IN. H ELECTRODE |
| NONDEFINITIVE SPEC/STD DATA | HC-4 TO U TYPE |
| DEPARTURE FROM CITED DESIGNATOR | AS MODIFIED BY SPECIAL FEATURES |
