NSN 5945-00-337-6759
Part Details | ELECTRONIC CHOPPER
5945-00-337-6759 An electromechanical or electronic (includes solid state semiconductor items) device designed to convert an electrical signal into a modified square wave output signal. For items excited by an alternating current, the output signal is the same frequency as, and bears a definite phase relationship to, the excitation voltage. For those electronic items designed to operate on direct current only, the output frequency of the item is dependent upon the inherent properties of the item, or the internal or external circuit constants, or the applied driving coil voltage impressed on the input signal. For an electromechanical item whose coil is designed for direct current only, see VIBRATOR, INTERRUPTER and VIBRATOR, SELF-RECTIFYING.
Alternate Parts: 138C219H01, 5945-00-337-6759, 00-337-6759, 5945003376759, 003376759
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | DEC 19, 1973 | 00-337-6759 | 19759 ( CHOPPER, ELECTRONIC ) |
REFERENCE DRAWINGS & PICTURES

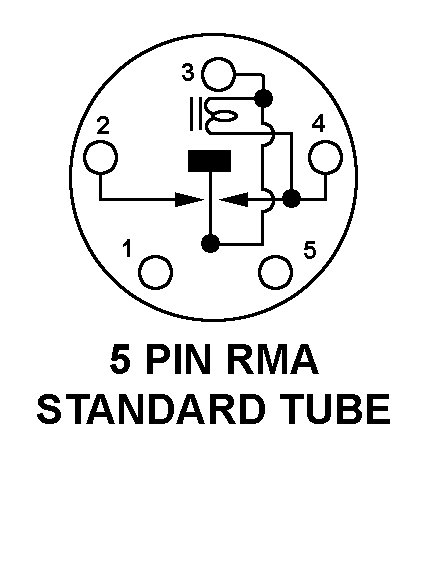

5 PIN STANDARD TUBE
Cross Reference | NSN 5945-00-337-6759
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 138C219H01 | 97942 | NORTHROP GRUMMAN SYSTEMS CORPORATIONDIV NORTHROP GRUMMAN SYSTEMS |
Technical Data | NSN 5945-00-337-6759
| Characteristic | Specifications |
|---|---|
| UNIT TYPE | MQ ANY ACCEPTABLE |
| INPUT VOLTAGE RATING | A6.3 AC VOLTS |
| DRIVE VOLTAGE RELATIONSHIP TO INPUT VOLTAGE | EQUAL |
| OUTPUT/INPUT VOLTAGE RELATIONSHIP | EQUAL |
| CONTACT ARRANGEMENT | SINGLE POLE, DOUBLE THROW |
| CONTACT VOLTAGE RATING | A10.0 DC VOLTS |
| CONTACT CURRENT RATING | 1.0 MILLIAMPERES NOMINAL |
| PHASE ANGLE IN DEG | 83.0 |
| DWELL TIME RATING IN DEG | 170.0 NOMINAL |
| HERMETICALLY SEALED FEATURE | NOT PROVIDED |
| TERMINAL QUANTITY | 5 |
| TERMINAL TYPE | FLEXIBLE LEAD |
| OVERALL DIAMETER | 0.430 INCHES NOMINAL |
| OVERALL LENGTH | 0.820 INCHES NOMINAL |
| PLUG IN MOUNTING FEATURE | NOT PROVIDED |
| MOUNTING METHOD | TERMINAL |
| MOUNTING PROVISION | TERMINALS |
| MOUNTING FACILITY QUANTITY | 5 |
| MOUNTING FACILITY SIZE | 0.025 IN. DIA BY 0.750 IN. LG |
| MOUNTING CONFIGURATION | TERMINAL MTD |
| BASE CONNECTION WIRING STYLE | 5 PIN STANDARD TUBE |
| COIL TYPE | ISOLATED |
| CONNECTION LOCATION | TOP |
