NSN 5945-00-321-0611
Part Details | ELECTRONIC CHOPPER
5945-00-321-0611 An electromechanical or electronic (includes solid state semiconductor items) device designed to convert an electrical signal into a modified square wave output signal. For items excited by an alternating current, the output signal is the same frequency as, and bears a definite phase relationship to, the excitation voltage. For those electronic items designed to operate on direct current only, the output frequency of the item is dependent upon the inherent properties of the item, or the internal or external circuit constants, or the applied driving coil voltage impressed on the input signal. For an electromechanical item whose coil is designed for direct current only, see VIBRATOR, INTERRUPTER and VIBRATOR, SELF-RECTIFYING.
Alternate Parts: VB1003B, VB-1003-B, 5945-00-321-0611, 00-321-0611, 5945003210611, 003210611
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-321-0611 | 19759 ( CHOPPER, ELECTRONIC ) |
REFERENCE DRAWINGS & PICTURES

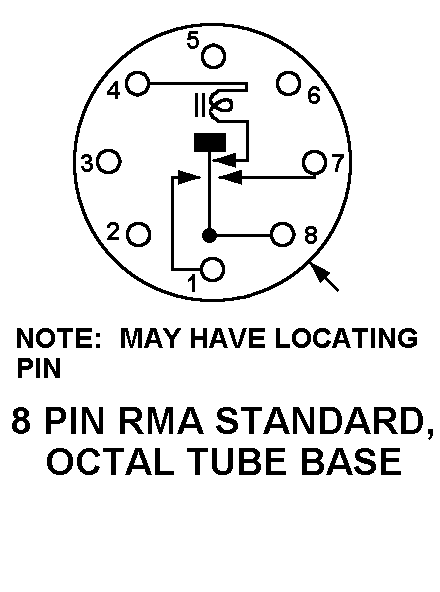

8 PIN STANDARD OCTAL TUBE
Cross Reference | NSN 5945-00-321-0611
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| VB-1003-B | 80249 | BAE SYSTEMS INFORMATION ANDELECTRONIC SYSTEMS INTEGRATION INC. |
Technical Data | NSN 5945-00-321-0611
| Characteristic | Specifications |
|---|---|
| UNIT TYPE | MR ANY ACCEPTABLE |
| INPUT VOLTAGE RATING | A6.3 AC VOLTS |
| DRIVE VOLTAGE RELATIONSHIP TO INPUT VOLTAGE | EQUAL |
| OUTPUT/INPUT VOLTAGE RELATIONSHIP | EQUAL |
| CONTACT ARRANGEMENT | SINGLE POLE, DOUBLE THROW |
| CONTACT OPERATION SEQUENCE | BREAKS BEFORE MAKES |
| CONTACT VOLTAGE RATING | C100.0 DC VOLTS |
| CONTACT CURRENT RATING | 2.0 MILLIAMPERES NOMINAL |
| PHASE ANGLE IN DEG | 40.0 |
| DWELL TIME RATING IN DEG | 140.0 MINIMUM AND 176.0 MAXIMUM |
| HERMETICALLY SEALED FEATURE | PROVIDED |
| OPERATING TEMP RANGE | -65.0 TO +85.0 DEG CELSIUS |
| TERMINAL QUANTITY | 8 |
| TERMINAL TYPE | TUBE PLUG |
| OVERALL DIAMETER | 1.500 INCHES NOMINAL |
| OVERALL LENGTH | 3.188 INCHES NOMINAL |
| PLUG IN MOUNTING FEATURE | PROVIDED |
| BASE TYPE | STANDARD BASE |
| BASE MOUNTING SIZE DESIGNATION | 8 PIN TUBE |
| TERMINAL PATTERN ARRANGEMENT | 1.125 IN. DIA TERMINAL CIRCLE |
| MOUNTING METHOD | TERMINAL |
| MOUNTING PROVISION | TERMINALS |
| MOUNTING FACILITY QUANTITY | 8 |
| MOUNTING FACILITY SIZE | 0.112 IN. DIA BY 0.375 IN. LG |
| MOUNTING CONFIGURATION | PLUG IN MTD |
| BASE CONNECTION WIRING STYLE | 8 PIN STANDARD OCTAL TUBE |
| COIL TYPE | NOT ISOLATED |
