NSN 5945-00-262-0817
Part Details | ELECTRICAL SOLENOID
5945-00-262-0817 An item consisting of one or more coils surrounding an iron core. The coil(s) and the core are moveable in relation to each other. The axial or rotary movement is a result of the magnetic flux of the coil. It is designed to convert electrical energy into mechanical energy. It does not include switch contacts. See also RELAY, ELECTROMAGNETIC, and ELECTROMAGNETIC ACTUATOR.
Alternate Parts: AC102115V, AC102-115V, 5945-00-262-0817, 00-262-0817, 5945002620817, 002620817
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUL 04, 1973 | 00-262-0817 | 00310 ( SOLENOID, ELECTRICAL ) |
REFERENCE DRAWINGS & PICTURES

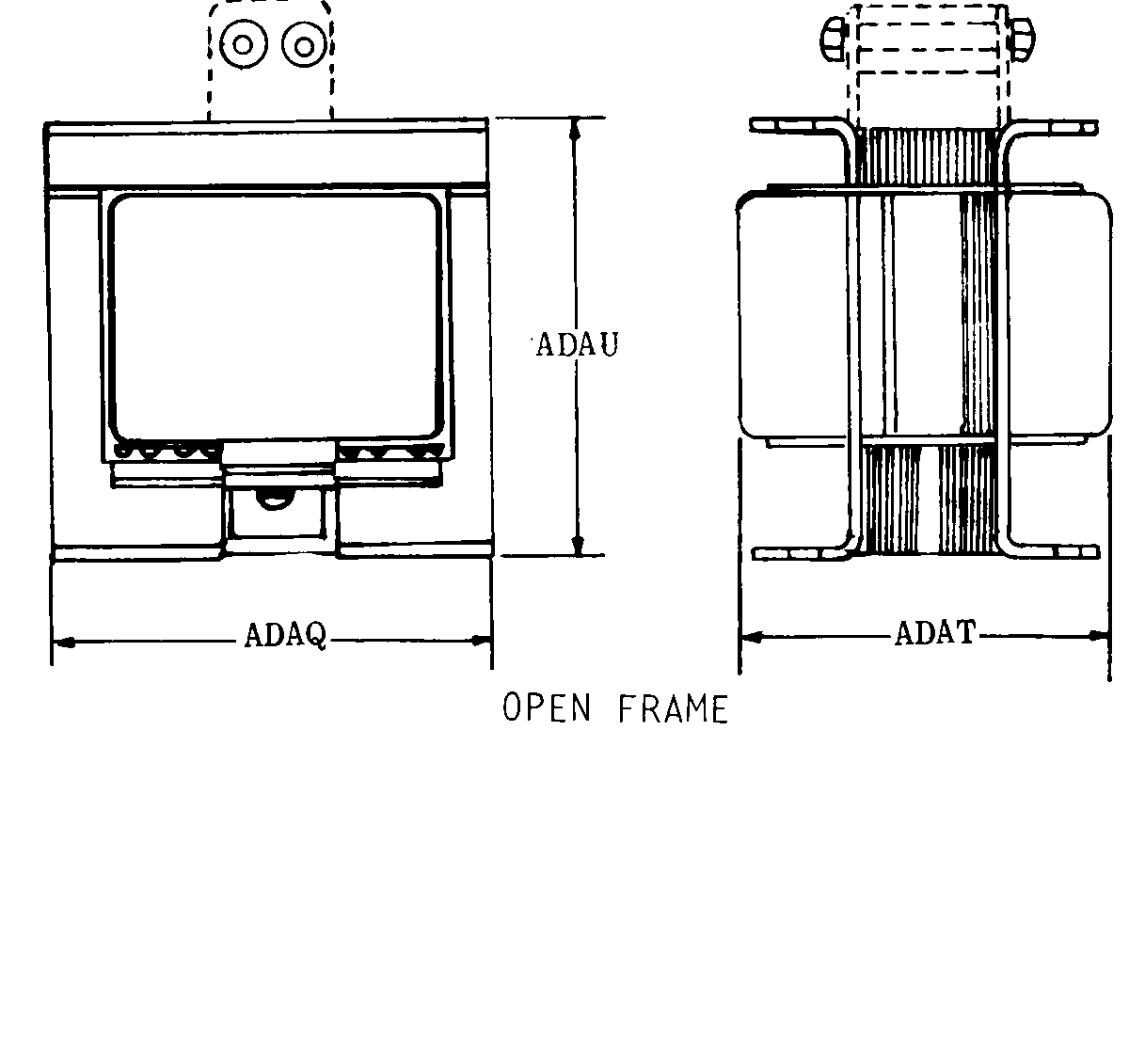

OPEN FRAME
Cross Reference | NSN 5945-00-262-0817
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AC102-115V | 81823 | WEST COAST ELECTRICAL MFG CO |
Technical Data | NSN 5945-00-262-0817
| Characteristic | Specifications |
|---|---|
| BODY STYLE | OPEN FRAME |
| MAGNETIC COIL QUANTITY | 1 |
| DUTY TYPE | CONTINUOUS |
| ACTUATOR STROKE TYPE | PULL |
| POWER TAKEOFF CONNECTION TYPE | U-SHAPED BRACKET |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 SLOT |
| TERMINAL LOCATION | ONE SIDE |
| TERMINAL TYPE AND QUANTITY | 2 WIRE LEAD |
| INCLOSURE TYPE | UNINCLOSED |
| BODY LENGTH | 1.687 INCHES NOMINAL |
| BODY WIDTH | 1.562 INCHES NOMINAL |
| BODY HEIGHT | 2.500 INCHES NOMINAL |
| VOLTAGE RATING IN VOLTS | 115.0 AC MAXIMUM |
| LINEAR FORCE DELIVERED | 4.00 POUNDS |
| ENERGIZING STROKE MAXIMUM LENGTH | 0.875 INCHES |
| MOUNTING FACILITY PATTERN | FOUR POSITION RECTANGULAR |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 1.312 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 1.218 INCHES NOMINAL |
| MOUNTING SLOT WIDTH | 0.172 INCHES NOMINAL |
| CASE MATERIAL | METAL |
| FREQUENCY IN HERTZ | 60.0 NOMINAL |
