NSN 5945-00-228-2956
Part Details | ELECTRICAL SOLENOID
5945-00-228-2956 An item consisting of one or more coils surrounding an iron core. The coil(s) and the core are moveable in relation to each other. The axial or rotary movement is a result of the magnetic flux of the coil. It is designed to convert electrical energy into mechanical energy. It does not include switch contacts. See also RELAY, ELECTROMAGNETIC, and ELECTROMAGNETIC ACTUATOR.
Alternate Parts: 16KKK100AP10, 16KKK100AP10, 494549, 5945-00-228-2956, 00-228-2956, 5945002282956, 002282956
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-228-2956 | 00310 ( SOLENOID, ELECTRICAL ) |
REFERENCE DRAWINGS & PICTURES

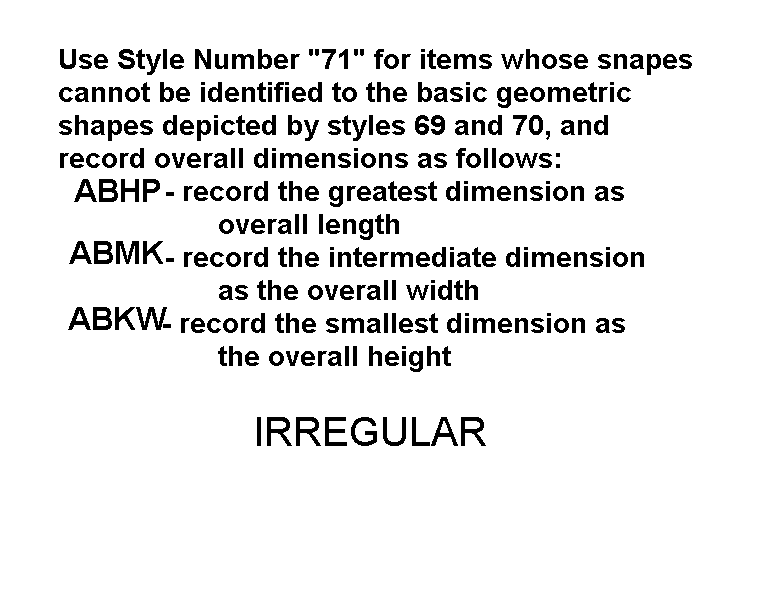

IRREGULAR
Cross Reference | NSN 5945-00-228-2956
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 16KKK100AP10 | 42337 | ACME-CLEVELAND CORPNATIONAL ACME DIV |
| 16KKK100AP10 | 1R4E4 | DEVLIEG BULLARD II INC. |
| 494549 | 10001 | NAVAIR AND NAVSEA MANAGEDORIGINAL DESIGN ACTIVITY DWG NOT |
Technical Data | NSN 5945-00-228-2956
| Characteristic | Specifications |
|---|---|
| BODY STYLE | IRREGULAR |
| MAGNETIC COIL QUANTITY | 1 |
| DUTY TYPE | CONTINUOUS |
| ACTUATOR STROKE TYPE | PUSH |
| POWER TAKEOFF CONNECTION TYPE | PLAIN |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 UNTHREADED HOLE |
| TERMINAL LOCATION | ONE SIDE |
| TERMINAL TYPE AND QUANTITY | 2 WIRE LEAD |
| INCLOSURE TYPE | FULLY INCLOSED |
| OVERALL LENGTH | 3.250 INCHES NOMINAL |
| OVERALL WIDTH | 2.125 INCHES NOMINAL |
| OVERALL HEIGHT | 1.625 INCHES NOMINAL |
| VOLTAGE RATING IN VOLTS | 115.0 AC MAXIMUM |
| CURRENT RATING | 1.298 AMPERES NOMINAL |
| LINEAR FORCE DELIVERED | 3.00 POUNDS |
| ENERGIZING STROKE MAXIMUM LENGTH | 1.000 INCHES |
| MOUNTING FACILITY PATTERN | FOUR POSITION RECTANGULAR |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 0.495 INCHES MINIMUM AND 0.505 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 1.495 INCHES MINIMUM AND 1.505 INCHES MAXIMUM |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.203 INCHES NOMINAL |
| CASE SURFACE TREATMENT | CADMIUM |
| SPECIAL FEATURES | SURFACE TREATMENT DOCUMENT AND CLASSIFICATION: DA46-P-1 |
| FRAGILITY FACTOR | MODERATELY RUGGED |
| STORAGE TYPE | GENERAL PURPOSE WAREHOUSE |
