NSN 5945-00-121-4841
Part Details | ELECTRICAL SOLENOID
5945-00-121-4841 An item consisting of one or more coils surrounding an iron core. The coil(s) and the core are moveable in relation to each other. The axial or rotary movement is a result of the magnetic flux of the coil. It is designed to convert electrical energy into mechanical energy. It does not include switch contacts. See also RELAY, ELECTROMAGNETIC, and ELECTROMAGNETIC ACTUATOR.
Alternate Parts: MC11290, 5945-00-121-4841, 00-121-4841, 5945001214841, 001214841
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | OCT 23, 1968 | 00-121-4841 | 00310 ( SOLENOID, ELECTRICAL ) |
REFERENCE DRAWINGS & PICTURES

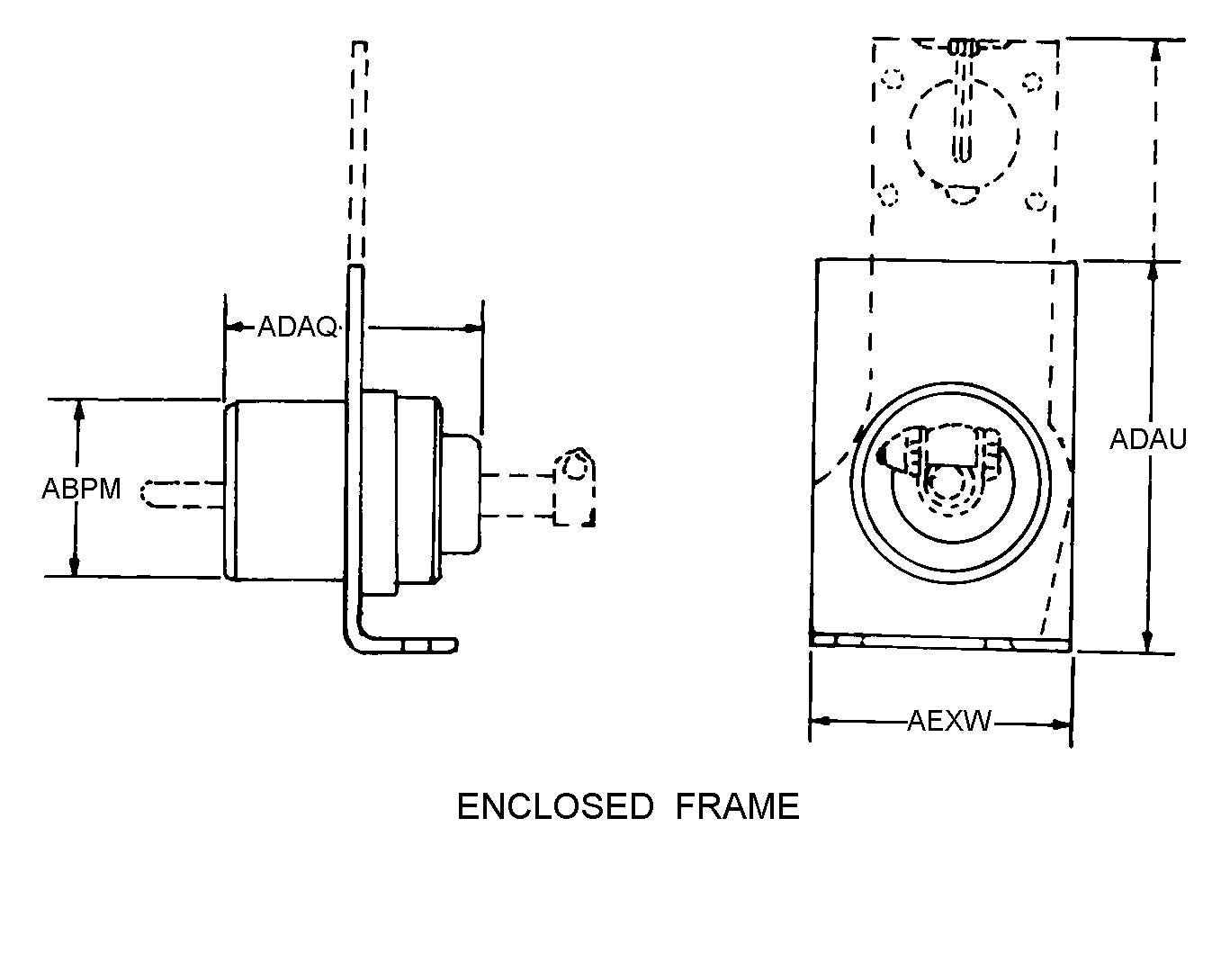

ENCLOSED FRAME
Cross Reference | NSN 5945-00-121-4841
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MC11290 | 76050 | EATON AEROSPACE LLCM C AEROSPACE DIV |
Technical Data | NSN 5945-00-121-4841
| Characteristic | Specifications |
|---|---|
| BODY STYLE | ENCLOSED FRAME |
| MAGNETIC COIL QUANTITY | 1 |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 THREADED HOLE |
| TERMINAL LOCATION | ACTUATOR END |
| TERMINAL TYPE AND QUANTITY | 3 WIRE LEAD |
| INCLOSURE TYPE | FULLY INCLOSED |
| TORQUE RATING AND TYPE | 3.00 INCH-POUNDS STARTING AND 5.00 INCH-POUNDS END |
| MOUNTING FACILITY PATTERN | FOUR POSITION RECTANGULAR |
