NSN 5945-00-103-6398
Part Details | ELECTRICAL SOLENOID
5945-00-103-6398 An item consisting of one or more coils surrounding an iron core. The coil(s) and the core are moveable in relation to each other. The axial or rotary movement is a result of the magnetic flux of the coil. It is designed to convert electrical energy into mechanical energy. It does not include switch contacts. See also RELAY, ELECTROMAGNETIC, and ELECTROMAGNETIC ACTUATOR.
Alternate Parts: 661063M0DIFIED, 05D0198G01, 5945-00-103-6398, 00-103-6398, 5945001036398, 001036398
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUN 12, 1968 | 00-103-6398 | 00310 ( SOLENOID, ELECTRICAL ) |
REFERENCE DRAWINGS & PICTURES

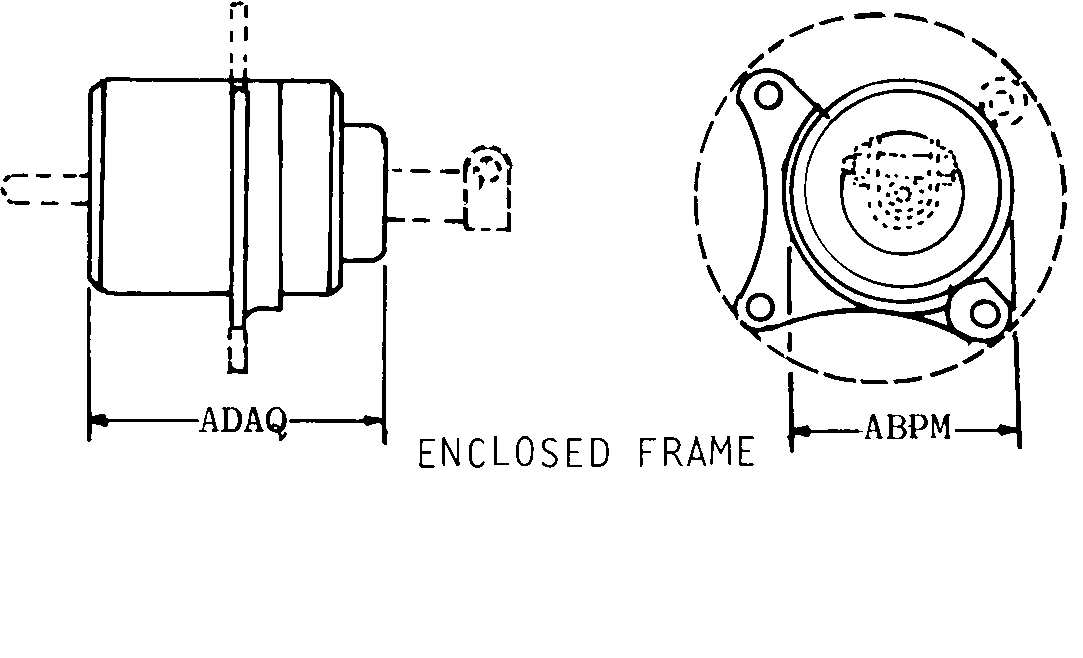

ENCLOSED FRAME
Cross Reference | NSN 5945-00-103-6398
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 661063M0DIFIED | 76854 | ELECTRO SWITCH CORP.DBA OAK GRISGSBY |
| 05D0198G01 | 97942 | NORTHROP GRUMMAN SYSTEMS CORPORATIONDIV NORTHROP GRUMMAN SYSTEMS |
Technical Data | NSN 5945-00-103-6398
| Characteristic | Specifications |
|---|---|
| BODY STYLE | ENCLOSED FRAME |
| ACTUATOR STROKE TYPE | ROTARY |
| BODY LENGTH | 2.812 INCHES MAXIMUM |
| SPECIAL FEATURES | ASSEMBLED WITH 2-WAFER ROTARY SWITCH |
