NSN 5945-00-102-6125
Part Details | ELECTRICAL SOLENOID
5945-00-102-6125 An item consisting of one or more coils surrounding an iron core. The coil(s) and the core are moveable in relation to each other. The axial or rotary movement is a result of the magnetic flux of the coil. It is designed to convert electrical energy into mechanical energy. It does not include switch contacts. See also RELAY, ELECTROMAGNETIC, and ELECTROMAGNETIC ACTUATOR.
Alternate Parts: 7721473001, 772-1473-001, 5945-00-102-6125, 00-102-6125, 5945001026125, 001026125
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | MAY 29, 1968 | 00-102-6125 | 00310 ( SOLENOID, ELECTRICAL ) |
REFERENCE DRAWINGS & PICTURES

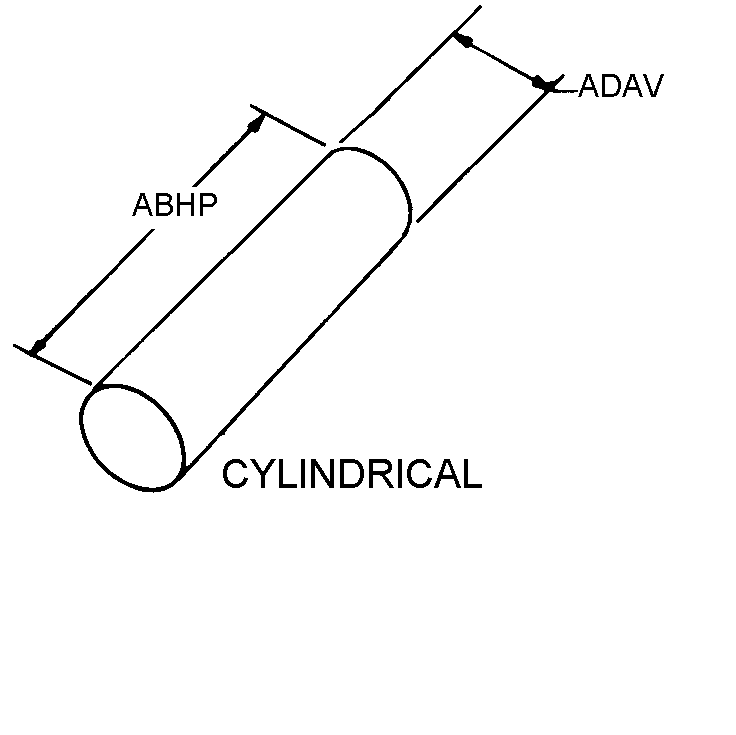

CYLINDRICAL
Cross Reference | NSN 5945-00-102-6125
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 772-1473-001 | 13499 | ROCKWELL COLLINS, INC.DBA GOVERNMENT SYSTEMS |
Technical Data | NSN 5945-00-102-6125
| Characteristic | Specifications |
|---|---|
| BODY STYLE | CYLINDRICAL |
| MAGNETIC COIL QUANTITY | 1 |
| DUTY TYPE | CONTINUOUS |
| ACTUATOR STROKE TYPE | PUSH |
| POWER TAKEOFF CONNECTION TYPE | U-SHAPED BRACKET |
| TERMINAL TYPE AND QUANTITY | 2 PIN |
| INCLOSURE TYPE | FULLY INCLOSED |
| VOLTAGE RATING IN VOLTS | 22.0 DC NOMINAL |
