NSN 5940-00-186-8736
Part Details | LUG TERMINAL
5940-00-186-8736 A terminal designed to be affixed, usually at one end, to a post, stud, chassis, or the like for mounting. It has provisions for attachment of wire(s) or similar electrical conductor(s) in order to establish an electrical connection and could require the use of tool(s) for attachment of wire. For post like terminals, see TERMINAL STUD. Excludes CLIP, ELECTRICAL; TERMINAL, QUICK DISCONNECT and TERMINAL FEEDTHRU.
Alternate Parts: B449, 5940-00-186-8736, 00-186-8736, 5940001868736, 001868736
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-186-8736 | 00746 ( TERMINAL, LUG ) |
REFERENCE DRAWINGS & PICTURES

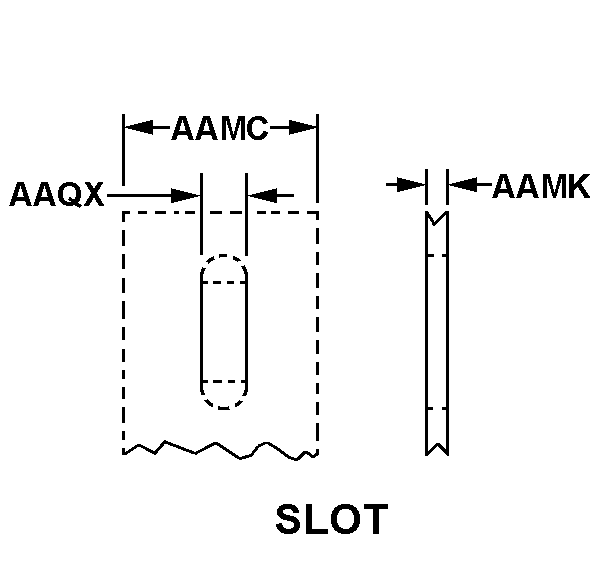

SLOT
CRIMP
Cross Reference | NSN 5940-00-186-8736
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| B449 | 56501 | THOMAS & BETTS CORPORATION |
Technical Data | NSN 5940-00-186-8736
| Characteristic | Specifications |
|---|---|
| BASIC SHAPE STYLE | CRIMP |
| OVERALL LENGTH | 0.938 INCHES |
| OVERALL WIDTH | 0.250 INCHES |
| MATERIAL THICKNESS | 0.035 INCHES |
| MAXIMUM CONDUCTOR SIZE ACCOMMODATED | 14 AWG |
| MOUNTING METHOD STYLE | SLOT |
| MOUNTING TONGUE WIDTH | 0.250 INCHES |
| MOUNTING FACILITY THICKNESS | 0.035 INCHES |
| MOUNTING SLOT WIDTH | 0.130 INCHES |
| ELECTRICAL INSULATION FEATURE | UNINSULATED |
