NSN 5940-00-177-6663
Part Details | QUICK DISCONNECT TERMINAL
5940-00-177-6663 A terminal which is a component of a TERMINAL SET, QUICK DISCONNECT or a SPLICE SET, QUICK DISCONNECT, and incorporates a means permitting its rapid engagement and disengagement, without the use of tools, to a mating part(s). It is designed either for attachment to a stud, post, chassis, or the like, or for permanent attachment to an electrical wire or cable. For items with cylindrical mating ends, see FERRULE, ELECTRICAL CONDUCTOR.
Alternate Parts: 1030012019, 103-0012-019, 120214, 12021-4, SMB379821, SM-B-379821, 5940-00-177-6663, 00-177-6663, 5940001776663, 001776663
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUN 11, 1969 | 00-177-6663 | 61180 ( TERMINAL, QUICK DISCONNECT ) |
REFERENCE DRAWINGS & PICTURES

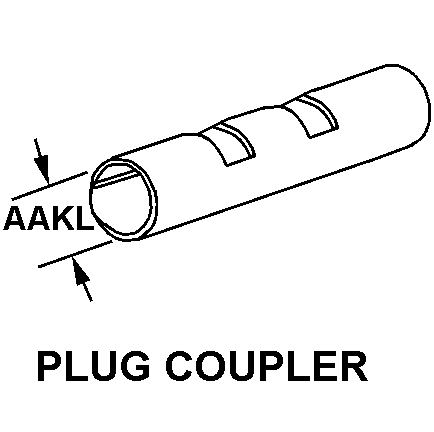

PLUG COUPLER
COUPLER
Cross Reference | NSN 5940-00-177-6663
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 103-0012-019 | 98278 | TE CONNECTIVITY CORPORATIONDBA MICRODOT PRODUCTS |
| 12021-4 | 98278 | TE CONNECTIVITY CORPORATIONDBA MICRODOT PRODUCTS |
| SM-B-379821 | 80063 | US ARMY COMMUNICATIONS &ELECTRONICS MATERIEL READINESS |
Technical Data | NSN 5940-00-177-6663
| Characteristic | Specifications |
|---|---|
| BASIC SHAPE STYLE | COUPLER |
| OVERALL LENGTH | 0.531 INCHES |
| MATERIAL THICKNESS | 0.010 INCHES |
| MAXIMUM CONDUCTOR SIZE ACCOMMODATED | 18 AWG |
| QUICK DISCONNECT STYLE | PLUG COUPLER |
| MAJOR PLUG DIAMETER ACCOMMODATED | 0.080 INCHES |
| ELECTRICAL INSULATION FEATURE | UNINSULATED |
