NSN 5940-00-173-7174
Part Details | QUICK DISCONNECT TERMINAL
5940-00-173-7174 A terminal which is a component of a TERMINAL SET, QUICK DISCONNECT or a SPLICE SET, QUICK DISCONNECT, and incorporates a means permitting its rapid engagement and disengagement, without the use of tools, to a mating part(s). It is designed either for attachment to a stud, post, chassis, or the like, or for permanent attachment to an electrical wire or cable. For items with cylindrical mating ends, see FERRULE, ELECTRICAL CONDUCTOR.
Alternate Parts: P5431641, 5940-00-173-7174, 00-173-7174, 5940001737174, 001737174
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | FEB 11, 1973 | 00-173-7174 | 61180 ( TERMINAL, QUICK DISCONNECT ) |
REFERENCE DRAWINGS & PICTURES

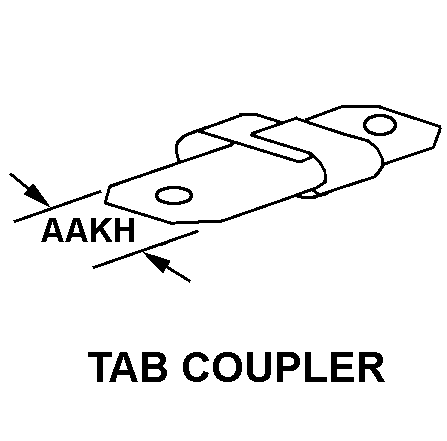

TAB COUPLER

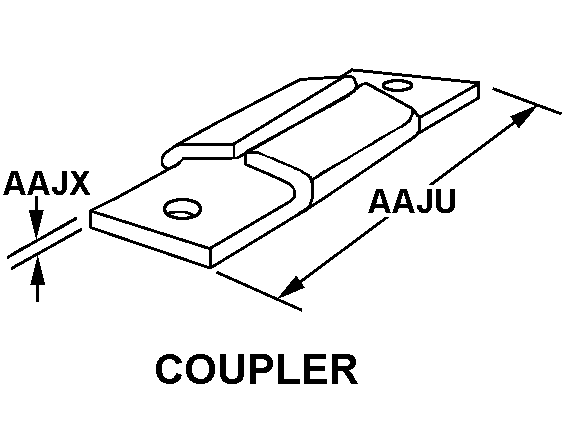

COUPLER
Cross Reference | NSN 5940-00-173-7174
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| P5431641 | 23671 | WHITE CONSOLIDATED INDUSTRIES INCFRIGIDAIRE DIV |
Technical Data | NSN 5940-00-173-7174
| Characteristic | Specifications |
|---|---|
| BASIC SHAPE STYLE | COUPLER |
| MATERIAL THICKNESS | 0.032 INCHES |
| QUICK DISCONNECT STYLE | TAB COUPLER |
| TAB WIDTH | 0.250 INCHES |
| ELECTRICAL INSULATION FEATURE | INSULATING SLEEVE |
