NSN 5940-00-153-7949
Part Details | CONDUCTOR SPLICE
5940-00-153-7949 An item designed to expedite or simplify the connection of two or more electrical conductors without bringing them to a fixed point such as a binding post or terminal. It may have a separate tubular shaped piece of nonmetallic, flexible material designed to be slipped over the crimped first piece to seal the conductor joint through heat sealing.
Alternate Parts: B41, B4-1, B41, B4-1, 5940-00-153-7949, 00-153-7949, 5940001537949, 001537949
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | OCT 10, 1971 | 00-153-7949 | 00137 ( SPLICE, CONDUCTOR ) |

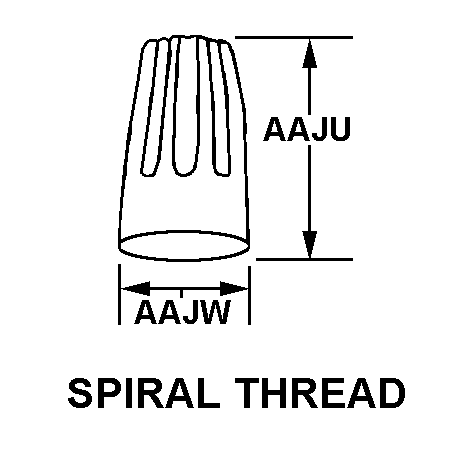

REFERENCE DRAWINGS & PICTURES
SPIRAL THREAD
Cross Reference | NSN 5940-00-153-7949
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| B4-1 | 8R659 | CARVER SUPPLY INC. |
| B4-1 | 89020 | TYCO ELECTRONICS/AGASTAT RELAYS |
Technical Data | NSN 5940-00-153-7949
| Characteristic | Specifications |
|---|---|
| BASIC SHAPE STYLE | SPIRAL THREAD |
| OVERALL LENGTH | 1.344 INCHES |
| OVERALL DIAMETER | 0.781 INCHES |
| MAXIMUM CONDUCTOR SIZE ACCOMMODATED | 6 AWG |
| ELECTRICAL INSULATION FEATURE | INSULATING SLEEVE |
| IDENTIFICATION CODE COLOR | BLUE AND GRAY |
