NSN 5935-00-087-8319
Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-087-8319 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Alternate Parts: 66D6242, S010458201LESSMTGHDWR, S01045-8201LESSMTGHDWR, 13315802LESSMTGHDWR, 133-158-02LESSMTGHDWR, 5935-00-087-8319, 00-087-8319, 5935000878319, 000878319
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | MAY 11, 1967 | 00-087-8319 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
REFERENCE DRAWINGS & PICTURES
TOP MOUNT

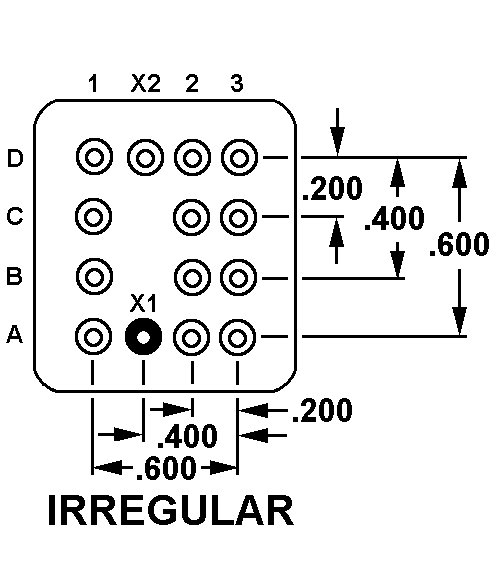

RECTANGULAR
IRREGULAR
Cross Reference | NSN 5935-00-087-8319
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 66D6242 | 19204 | ARMY, UNITED STATES DEPARTMENT OFTHE |
| S01045-8201LESSMTGHDWR | 58657 | LEACH INTERNATIONAL CORPORATIONDBA ESTERLINE POWER SYSTEMS |
| 133-158-02LESSMTGHDWR | 95354 | METHODE ELECTRONICS INC.DBA NETWORK BUSS PRODUCTS |
Technical Data | NSN 5935-00-087-8319
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | IRREGULAR |
| ACCOMMODATED CONTACT QUANTITY | 14 |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 10.0 |
| CONTACT MATERIAL | BERYLLIUM COPPER |
| CONTACT SURFACE TREATMENT | 0$DAG0000 |
| BODY STYLE | TOP MOUNT |
| OVERALL LENGTH | 1.720 INCHES MAXIMUM |
| OVERALL HEIGHT | 1.036 INCHES MAXIMUM |
| OVERALL WIDTH | 0.995 INCHES MINIMUM AND 1.005 INCHES MAXIMUM |
| PROJECTION LENGTH ABOVE MOUNTING SURFACE | 0.316 INCHES MINIMUM AND 0.328 INCHES MAXIMUM |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 14 CRIMP |
| MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS |
| MOUNTING METHOD | UNTHREADED HOLE |
| MOUNTING HOLE STYLE | RECTANGULAR |
| BODY MOUNTING HOLE ACCOMMODATION LENGTH | 1.070 INCHES MINIMUM AND 1.080 INCHES MAXIMUM |
| BODY MOUNTING HOLE ACCOMMODATION WIDTH | 0.995 INCHES MINIMUM AND 1.005 INCHES MAXIMUM |
| POLARIZATION TYPE | CONTACT POSITION |
| SPECIAL FEATURES | THREE 0.113 IN. DIA MTG HOLES SPACED C TO C DISTANCE BETWEEN @OUTSIDE MTG HOLES ALONG LG 0.625 IN. W 1.406 IN. |
| SPECIFIC EQUIPMENT ACCOMMODATED | RELAY |
| FABRICATION METHOD | MOLDED |
| PRECIOUS MATERIAL | GOLD AND SILVER |
| PRECIOUS MATERIAL AND WEIGHT | 0.014 GOLD GRAINS, TROY AND 0.014 SILVER GRAINS, TROY |
| PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD AND CONTACT SURFACES SILVER |
