NSN 5930-00-402-3680
Part Details | SENSITIVE SWITCH
5930-00-402-3680 A switch with a quick-acting mechanism actuated by a highly delicate tactile contact. Includes membrane switch. Excludes SWITCH, FLEXIBLE; SWITCH, PRESSURE; and SWITCH, THERMOSTATIC.
Alternate Parts: 39101, 39-101, 2500796, 5930-00-402-3680, 00-402-3680, 5930004023680, 004023680
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | APR 13, 1970 | 00-402-3680 | 00399 ( SWITCH, SENSITIVE ) |
REFERENCE DRAWINGS & PICTURES

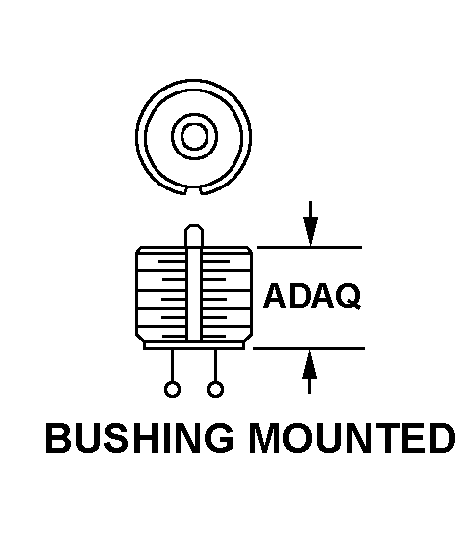

BUSHING MOUNTED
ROUND
Cross Reference | NSN 5930-00-402-3680
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 39-101 | 81073 | GRAYHILL, INC |
| 2500796 | 07187 | HONEYWELL INTERNATIONAL INC.DBA HONEYWELL |
Technical Data | NSN 5930-00-402-3680
| Characteristic | Specifications |
|---|---|
| MAXIMUM VOLTAGE RATING IN VOLTS | 115.0 AC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | B500.000 MILLIAMPERES RESISTIVE AND B100.000 MILLIAMPERES INDUCTIVE |
| BODY STYLE | BUSHING MOUNTED |
| BODY LENGTH | 0.500 INCHES NOMINAL |
| ACTUATOR STYLE | ROUND |
| ACTUATOR DIAMETER | 0.136 INCHES NOMINAL |
| ACTUATOR HEIGHT | 0.188 INCHES NOMINAL |
| ACTUATOR FREE POSITION HEIGHT | 0.188 INCHES NOMINAL |
| TERMINAL TYPE AND QUANTITY | 2 TAB, SOLDER LUG |
| SWITCH ACTUATING FORCE | 5.0 OUNCES NOMINAL |
| SWITCH RELEASE FORCE | 2.0 OUNCES MINIMUM |
| ACTUATOR MOVEMENT | A0.187 PRETRAVEL INCHES AND A0.080 OVERTRAVEL INCHES AND A0.107 DIFFERENTIAL INCHES |
| INCLOSURE TYPE | FULLY INCLOSED |
| MOUNTING METHOD | THREADED BUSHING |
| THREAD SERIES DESIGNATOR | UNEF |
| NOMINAL THREAD SIZE | 0.313 INCHES |
| THREAD CLASS | 2A |
