NSN 5930-00-394-0733

Part Details | SENSITIVE SWITCH

5930-00-394-0733 A switch with a quick-acting mechanism actuated by a highly delicate tactile contact. Includes membrane switch. Excludes SWITCH, FLEXIBLE; SWITCH, PRESSURE; and SWITCH, THERMOSTATIC.

Alternate Parts: H793250027, H793-2500-27, 4CE8, 4CE8, 556707022427, 556-7070224-27, 9704500, 5930-00-394-0733, 00-394-0733, 5930003940733, 003940733

Supply Group (FSG) NSN Assigned NIIN Item Name Code (INC)
59APR 05, 197400-394-073300399 ( SWITCH, SENSITIVE )
REFERENCE DRAWINGS & PICTURES

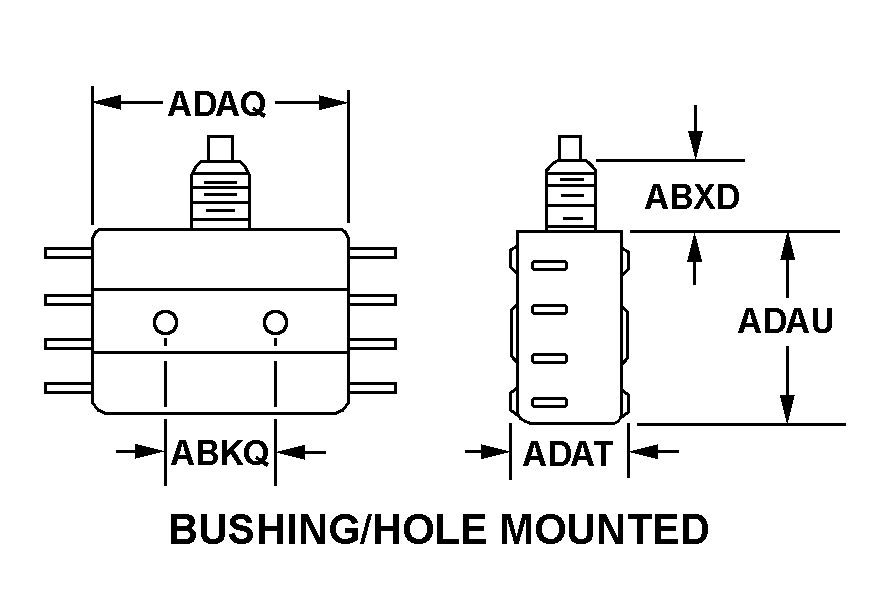

BUSHING/HOLE MOUNTED

ROUND

Cross Reference | NSN 5930-00-394-0733
Part Number Cage Code Manufacturer
H793-2500-2796169ELECTRIC BOAT CORPORATION
4CE891929HONEYWELL INTERNATIONAL INC.DBA HONEYWELL
4CE891928LOUIS MFG CO
556-7070224-2753711NAVAL SEA SYSTEMS COMMAND
9704500045F6REM PRODUCTS INC.
Technical Data | NSN 5930-00-394-0733
Characteristic Specifications
MAXIMUM VOLTAGE RATING IN VOLTS250.0 AC
CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGEB10.000 AMPERES RESISTIVE
BODY STYLE BUSHING/HOLE MOUNTED
CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH2.625 INCHES NOMINAL
BUSHING LENGTH0.720 INCHES NOMINAL
BODY LENGTH3.125 INCHES NOMINAL
BODY WIDTH1.440 INCHES NOMINAL
ACTUATOR STYLE ROUND
ACTUATOR DIAMETER0.250 INCHES NOMINAL
ACTUATOR HEIGHT0.375 INCHES NOMINAL
ACTUATOR FREE POSITION HEIGHT1.470 INCHES NOMINAL
TERMINAL TYPE AND QUANTITY1 CONNECTOR, RECEPTACLE
SWITCH ACTUATING FORCE192.0 OUNCES MAXIMUM
SWITCH RELEASE FORCE80.0 OUNCES MINIMUM
ACTUATOR MOVEMENTC0.070 PRETRAVEL INCHES AND B0.250 OVERTRAVEL INCHES AND C0.045 DIFFERENTIAL INCHES
INCLOSURE TYPE FULLY INCLOSED
MOUNTING METHOD THREADED BUSHING AND THREADED HOLE
UNTHREADED MOUNTING HOLE DIAMETER0.218 INCHES NOMINAL
THREAD SERIES DESIGNATOR UNF
NOMINAL THREAD SIZE0.625 INCHES
