NSN 5930-00-386-8133
Part Details | ROTARY SWITCH
5930-00-386-8133 A switch actuated by a definite angular rotation of the switch shaft about its axis. For items having rated actuation travel and pressure characteristics, see SWITCH, SENSITIVE. Excludes RELAY, ROTARY; SWITCH, STEPPING; and SWITCH, TELEPHONE (as modified).
Alternate Parts: 521561710, 5-21561-710, 342931, 8425A8014, 5930-00-386-8133, 00-386-8133, 5930003868133, 003868133
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | MAR 25, 1974 | 00-386-8133 | 02134 ( SWITCH, ROTARY ) |
REFERENCE DRAWINGS & PICTURES

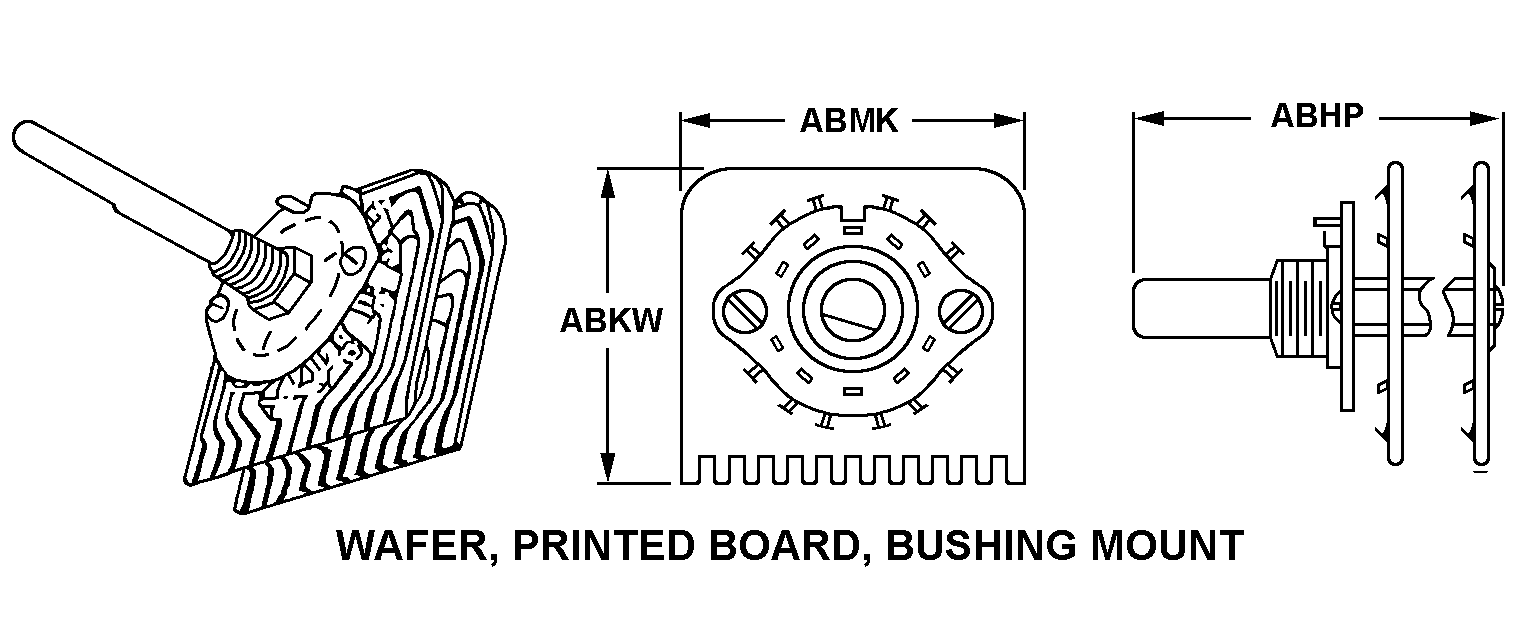

WAFER, PRINTED BOARD, BUSHING MOUNT
Cross Reference | NSN 5930-00-386-8133
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5-21561-710 | 76854 | ELECTRO SWITCH CORP.DBA OAK GRISGSBY |
| 342931 | 89536 | FLUKE CORPORATION |
| 8425A8014 | 89536 | FLUKE CORPORATION |
Technical Data | NSN 5930-00-386-8133
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | WAFER, PRINTED BOARD, BUSHING MOUNT |
| OVERALL HEIGHT | 1.429 INCHES NOMINAL |
| OVERALL WIDTH | 1.250 INCHES NOMINAL |
| INDIVIDUAL SECTION QUANTITY | 2 |
| SWITCH CONTACT BASIC DESIGN | NONPILE-UP NONSYMMETRICAL |
| TERMINAL TYPE | PRINTED CIRCUIT |
