NSN 5920-00-538-6205
Part Details | CARTRIDGE FUSE
5920-00-538-6205 A fuse in which the element is inclosed in a cylindrical body. The element may be renewable. The terminals may be of varying types. It may contain a visual indication that the fusible element is severed, and may also provide an audible alarm through auxiliary circuitry. For noncylindrical items, see FUSE, INCLOSED LINK.
Alternate Parts: 100203355, 70D, 70D5A, 70D-5A, 70D, 334005, 100203355, 70D, 70D, 100203355, 1751430702, 175-14307-02, 2486217, 2486-217, 215M, AX70D, 70D, 0004583004, 5920-00-538-6205, 00-538-6205, 5920005386205, 005386205
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-538-6205 | 00248 ( FUSE, CARTRIDGE ) |
REFERENCE DRAWINGS & PICTURES

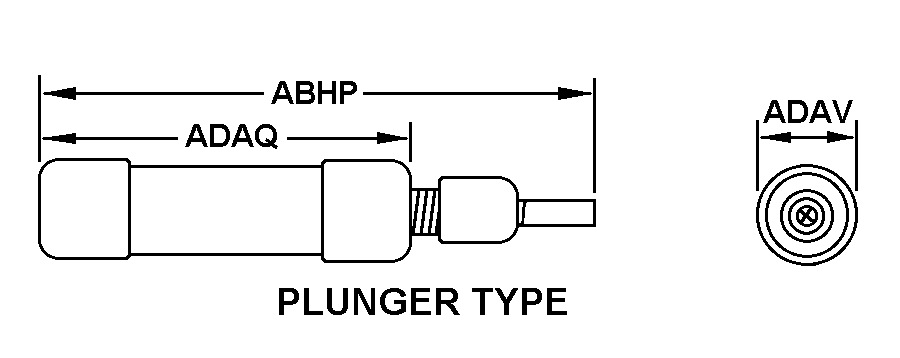

PLUNGER TYPE
Cross Reference | NSN 5920-00-538-6205
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 100203355 | 09JX9 | ALCATEL-LUCENT USA INC. |
| 70D | 64959 | AMERICAN TELEPHONE AND TELEGRAPH CO |
| 70D-5A | 71400 | COOPER BUSSMANN, LLCDBA COOPER BUSSMANN |
| 70D | 71400 | COOPER BUSSMANN, LLCDBA COOPER BUSSMANN |
| 334005 | 0YL13 | LUCENT TECHNOLOGIES INCADVANCED TECHNOLOGY SYSTEMS |
| 100203355 | 0YL13 | LUCENT TECHNOLOGIES INCADVANCED TECHNOLOGY SYSTEMS |
| 70D | 3B4M0 | LUCENT TECHNOLOGIES INCCORPORATE HEADQUARTERS |
| 70D | 06KW9 | LUCENT TECHNOLOGIES INCDBA FEDERAL MARKETING GROUP |
| 100203355 | 06KW9 | LUCENT TECHNOLOGIES INCDBA FEDERAL MARKETING GROUP |
| 175-14307-02 | 38215 | PRISM SYSTEMS INC |
| 2486-217 | 74006 | RELIANCE COMM/TEC CORPLORAIN PRODUCTS DIV |
| 215M | 74006 | RELIANCE COMM/TEC CORPLORAIN PRODUCTS DIV |
| AX70D | 61857 | SAN-O INDUSTRIAL CORP |
| 70D | 98997 | SIGHTMASTER CORP |
| 0004583004 | 93929 | SPX CORPORATIONDBA RADIODETECTION |
Technical Data | NSN 5920-00-538-6205
| Characteristic | Specifications |
|---|---|
| BODY STYLE | PLUNGER TYPE |
| OVERALL LENGTH | 1.781 INCHES NOMINAL |
| BODY LENGTH | 1.266 INCHES NOMINAL |
| OVERALL DIAMETER | 0.267 INCHES NOMINAL |
| CONTINUOUS CURRENT RATING IN AMPS | 5.000 |
| MAXIMUM VOLTAGE RATING IN VOLTS | 300.0 AC AND 300.0 DC |
| CIRCUIT OVER-CURRENT INTERRUPTION TYPE | NORMAL INSTANTANEOUS |
| SHORT-CIRCUIT/INTERRUPT CURRENT RATING IN AMPS | 300.0 |
| INTERRUPTION INDICATOR METHOD | TERMINAL-VISUAL OR ALARM |
| TERMINAL SURFACE TREATMENT | NICKEL PLATED |
| FEATURES PROVIDED | NONRENEWABLE FUSIBLE ELEMENT |
| SPECIAL FEATURES | GREEN COLOR-CODED INDICATING PIN |
| CASE MATERIAL | GLASS |
| TERMINAL MATERIAL | COPPER |
